Insulated ROLL

ROLL 220 CATERING

Ext. dim. (LxDxH) : 600 x 800 x 1130 mm
Int. dim. (LxDxH) : 430 x 610 x 820 mm
Int. Vol. : 215 Liters
Coef.K : 0.38 W/m².°C
Unloaded weight : 69 Kg
Insulating material : Polyurethane foam
Wall material : Food grade polyethylene
Logistics formats : Euronorm trays, Gastronorm trays et Half Euro-pallet 80 x 600
Application sector : Food
Certification :

Customisation options

Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.

Custom RAL colours available

Iron-on handling stickers

Engraved nameplate

Accessories compatible with this product

To add an accessory to your quote, please write your request in the text box provided.

Accessory Eutectic plate rack TOP 370

Height : 1585 mm

Width : 690 mm

Depth : 1020 mm

Number of plates stored : up to 40

Handling handles : 4

Tare weight : 90 kg

Loaded weight : 442 kg
Accessory Brake wheel

Diameter : ø 100 mm

Height with base plate : 128 mm

Tyre width : 36 mm

Features : hybrid wheel

Polyamide wheel centre and tyre, elastic rubber ring :
Accessory Feets 60 mm

Diameter : 60 mm

Height with base plate : 130 mm

Metallic :

Specifications

Isothermal roll made of double wall rotomoulded PE/PU foam injection moulding, a process in which Olivo is a world leader. The one-piece structure guarantees airtightness and avoids thermal bridges.

The inside of the box is slotted to create convection corridors that favour the circulation of cold.

Designed and manufactured in France

Our factory is located in the heart of the Saint-Etienne region, upstream from the Gorges de la Loire. For over 65 years, we have been working to maintain our production facilities in Rouchonne, the cradle of plastics processing and industrial know-how.

Durability and maintenance

The rotational moulding process facilitates the welding of the material in the event of breakage. Regular maintenance and careful handling will prolong the life of the product.

Technical know-how

The manufacture of an isothermal container requires no less than 200 manual operations. This know-how contributes to the quality and robustness of Olivo containers.

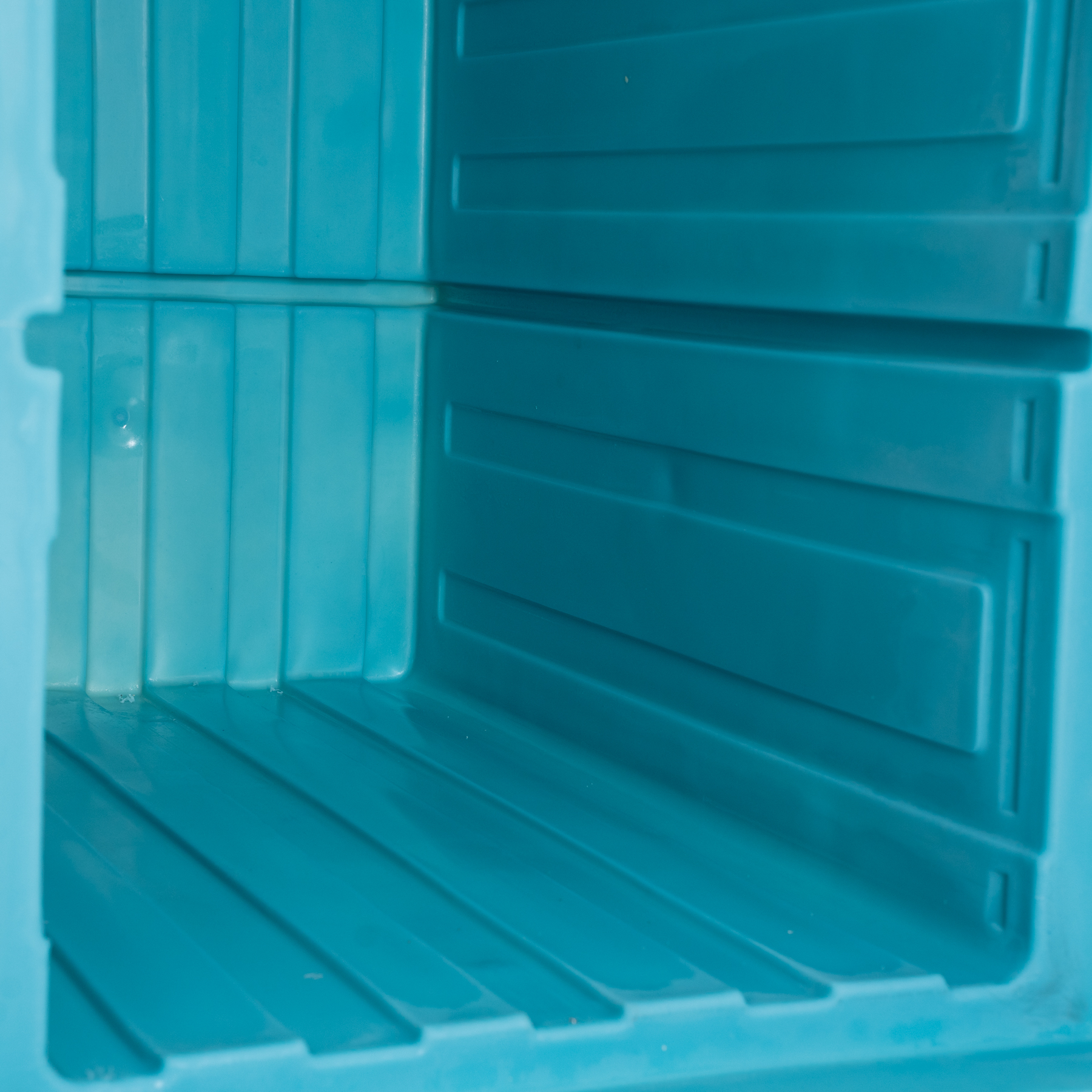

Monobloc rotomoulding. Internal convection grooves

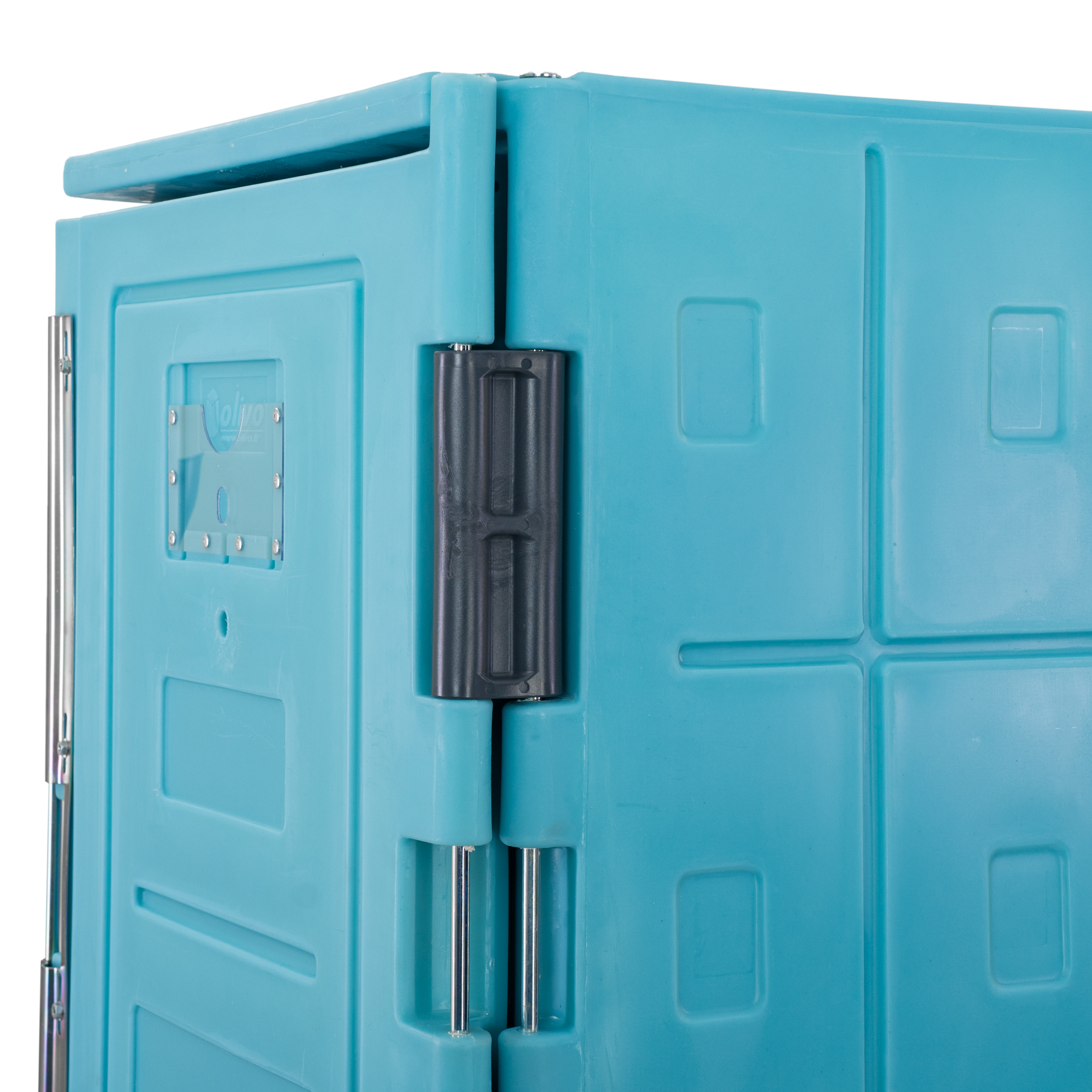

Double axles door hinge. Door opens to 270°

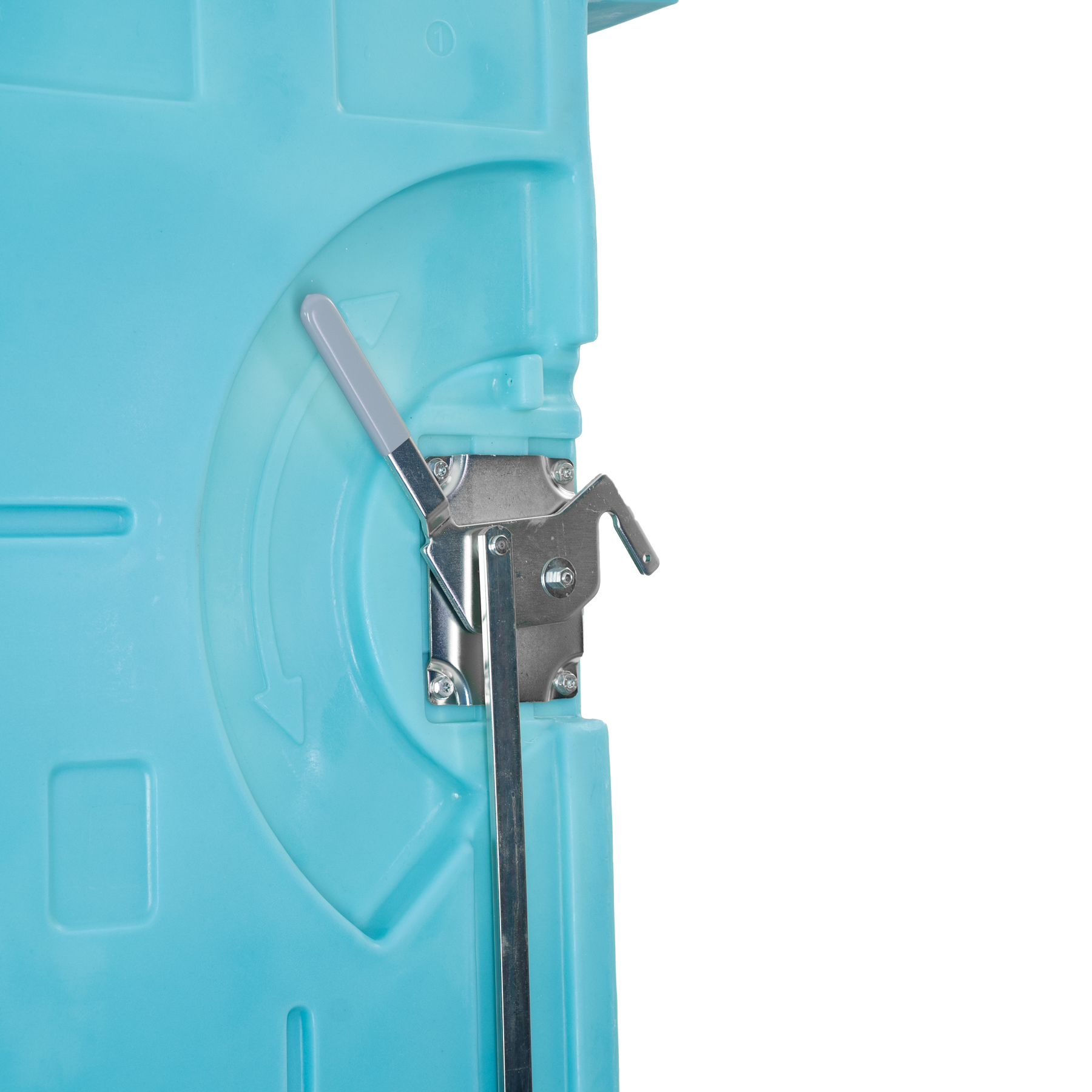

1 point «pelican» quick closing system, rustproof treated
Embedded support frame, anti-corrosion coated steel, equipped with 2 fixed casters and 2 swivel casters Ø 100 mm

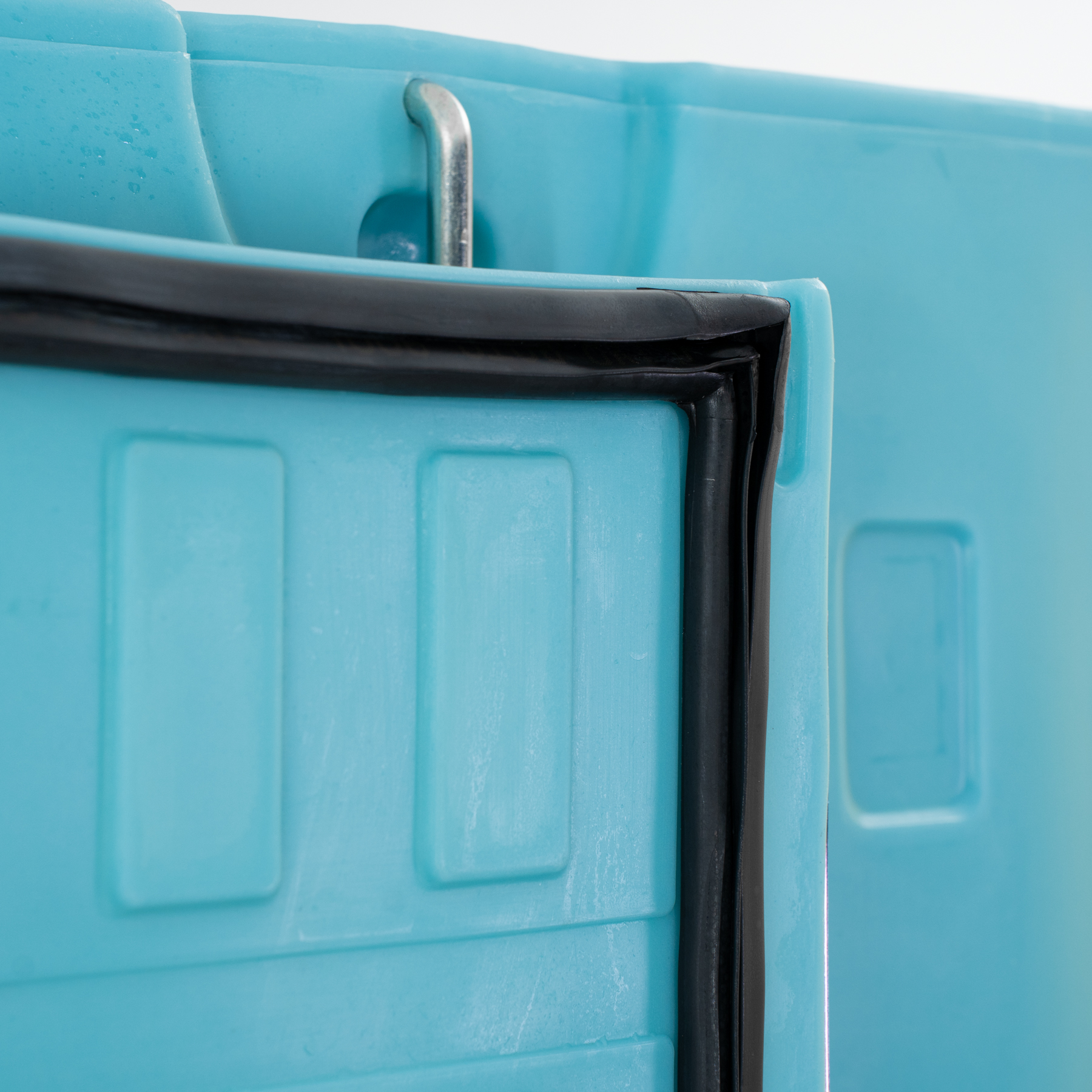

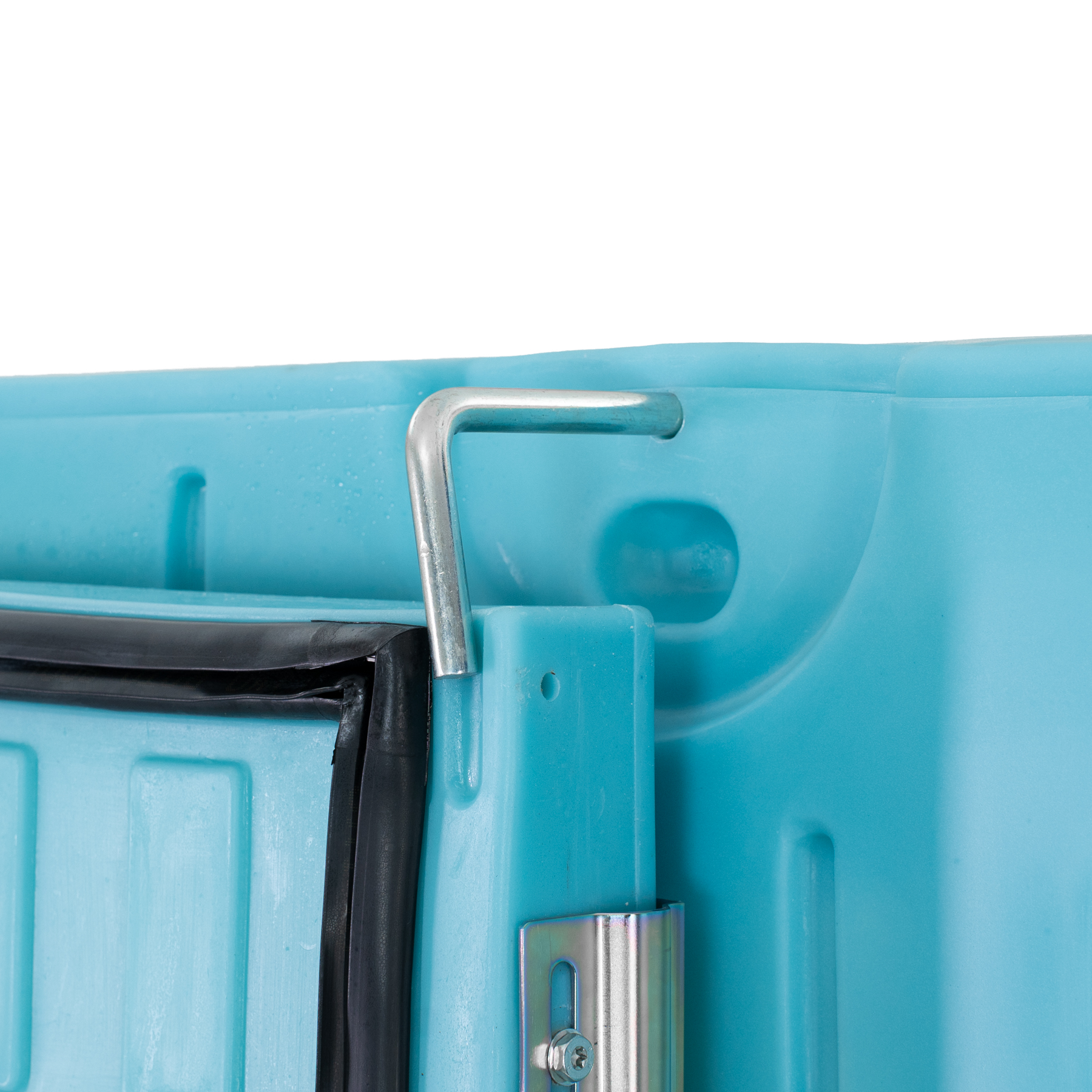

EPDM one-piece frame seal. Door hold-open system

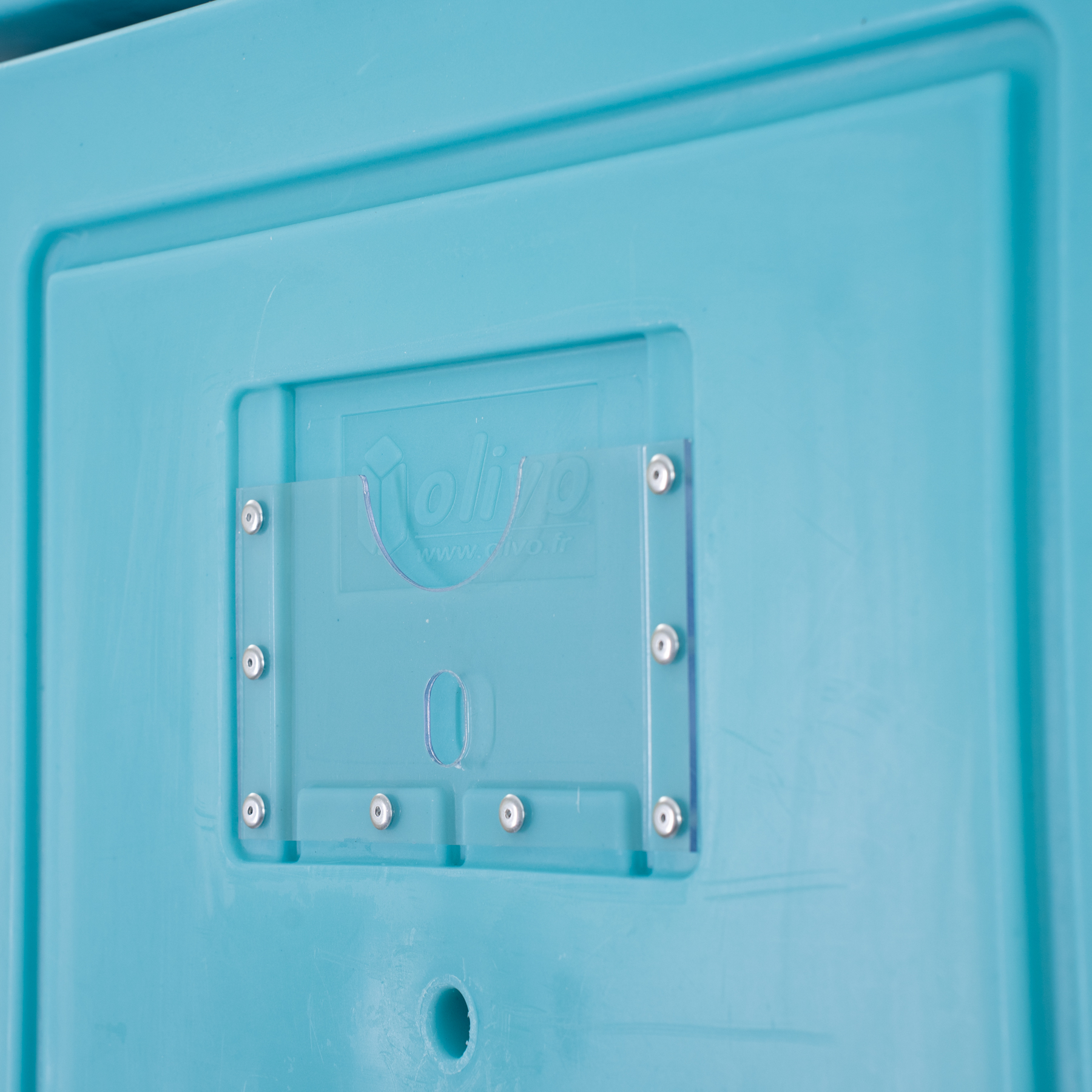

Embedded label holder

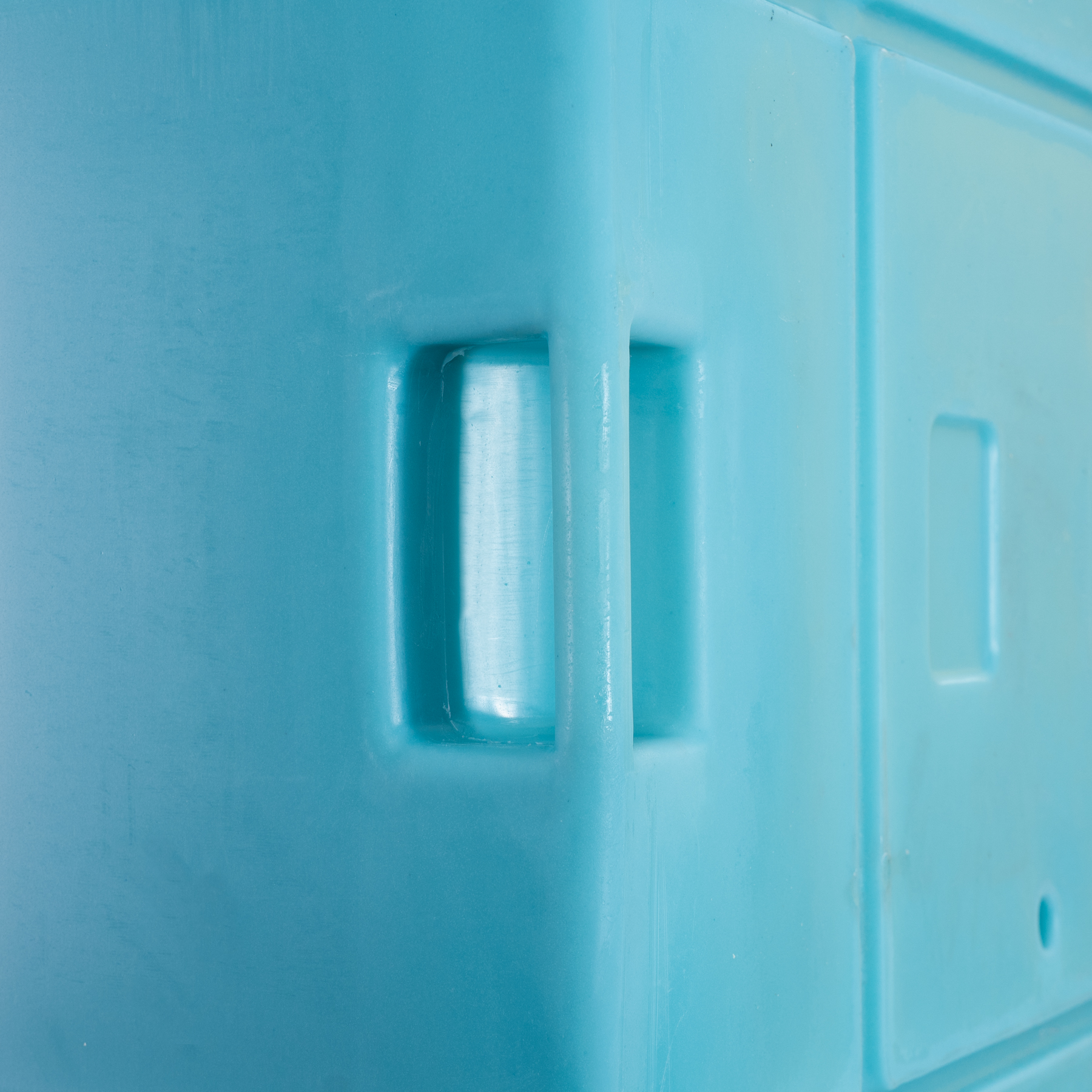

2 embedded moulded handles
Moulded eutectic plate holder support

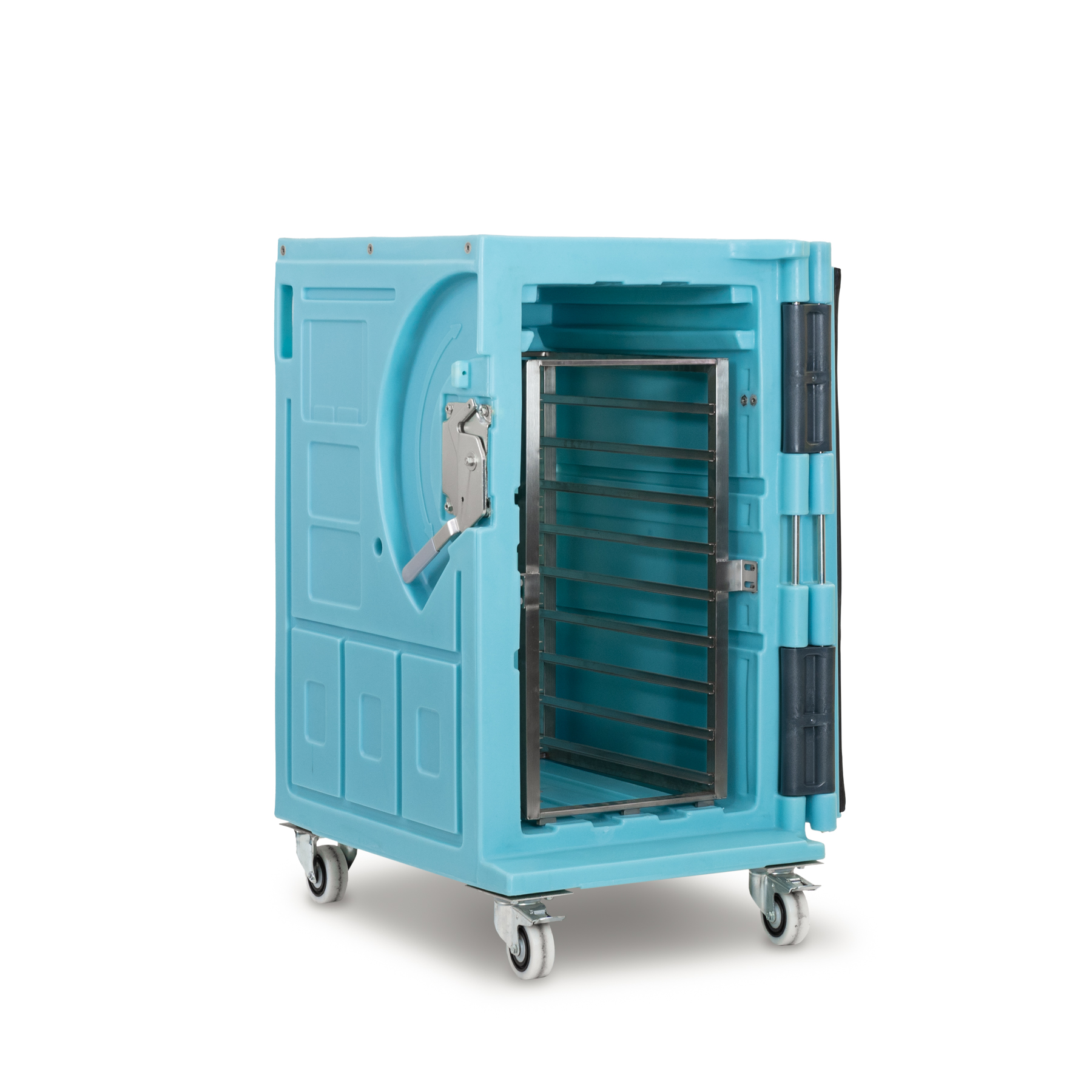

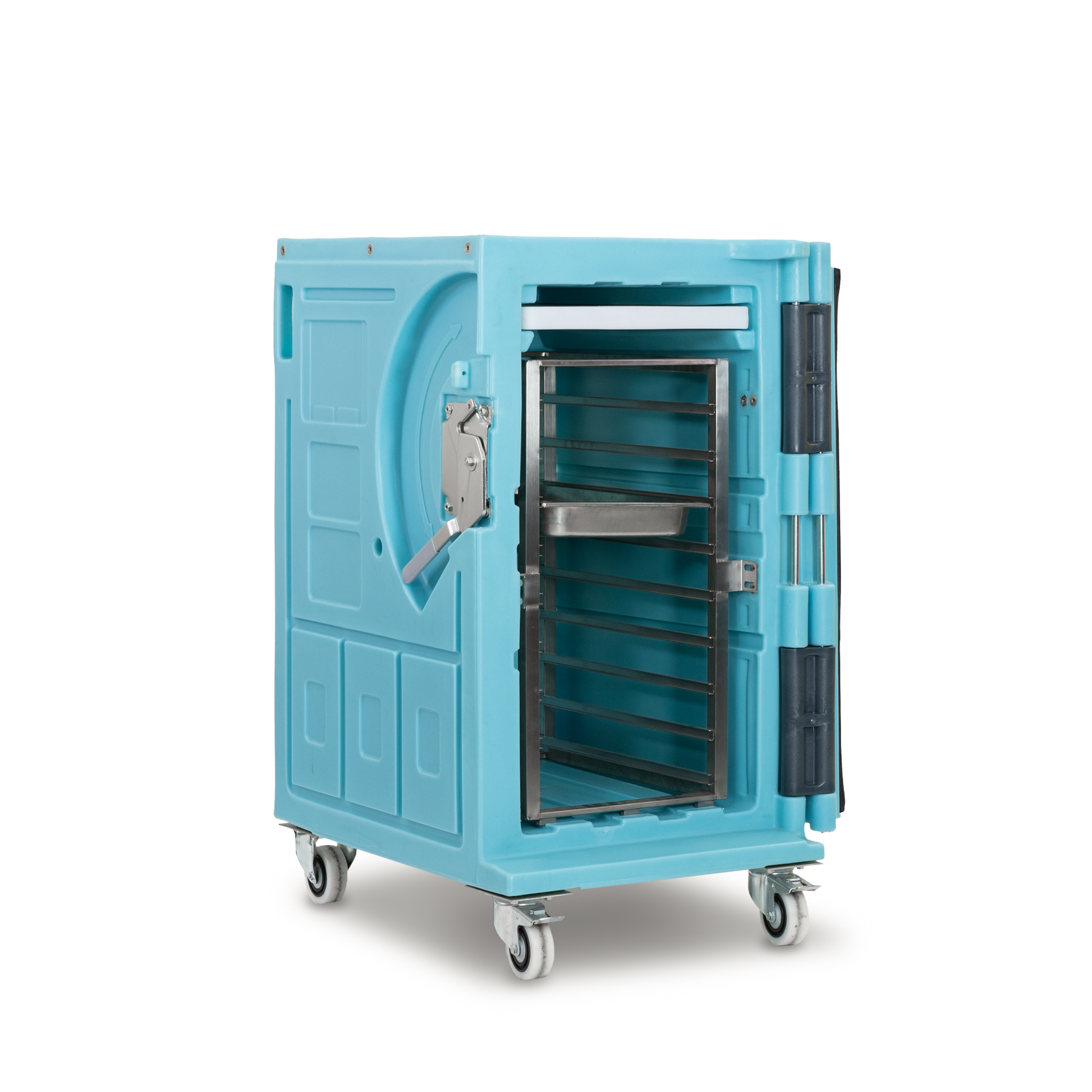

9-level stainless steel rack for Euronorm or Gastronorm trays

Download technical guide

Frequently asked questions about this product

Isothermal containers

How to choose a model of insulated container ?
The choice of an insulated container rests on several parameters which will be analysed with a member of our team:
- Type of products to be transported;
- Volume of products to be transported and their packaging;
- Type of vehicle used to transport the insulated container;
- Organisation of collection and/or delivery rounds;
- …
The choice of the container is also associated with that of the cold source. This must be selected based on different data:
- Time in transit;
- Legal temperature of the product to be transported;
- External temperature and humidity conditions;
- …
Before making your final choice, we strongly recommend that you contact a member of our team, who will be able to support you in planning and optimising your cold chain logistics.

Isothermal containers

Do you offer an annual service

Yes. To prolong the useful life of the insulated containers and to combat MSDs, Olivo offers a fleet maintenance service. Seals, walls, casters, feet and gas springs all need to be checked regularly to guarantee they are in good condition and working properly. The performance and ease of use of the equipment depends on regular, serious technical follow-up. For more information about this service, go to Maintenance & Repairs.

You can contact your account manager who will help you to determine which offer is best suited to your fleet and your actual needs.

Isothermal containers

How can an insulated container be recycled ?
As part of its environmental policy and to meet Extended Producer Responsibility requirements, Olivo offers a service dismantling insulated containers and reusing, recycling or valorising its components.

When must an insulated container be retired and recycled?
- If your use is subject to the ATP, your insulated container is over 12 years old and you wish to use it for journeys over 80 km;
- If the extent of the wear and tear on the insulated container means it can no longer be repaired;
For more information on this service, go to Recycling & end of life.

To recycle your insulated container, you will need to contact your account manager, who will guide you through the dismantling procedure.
