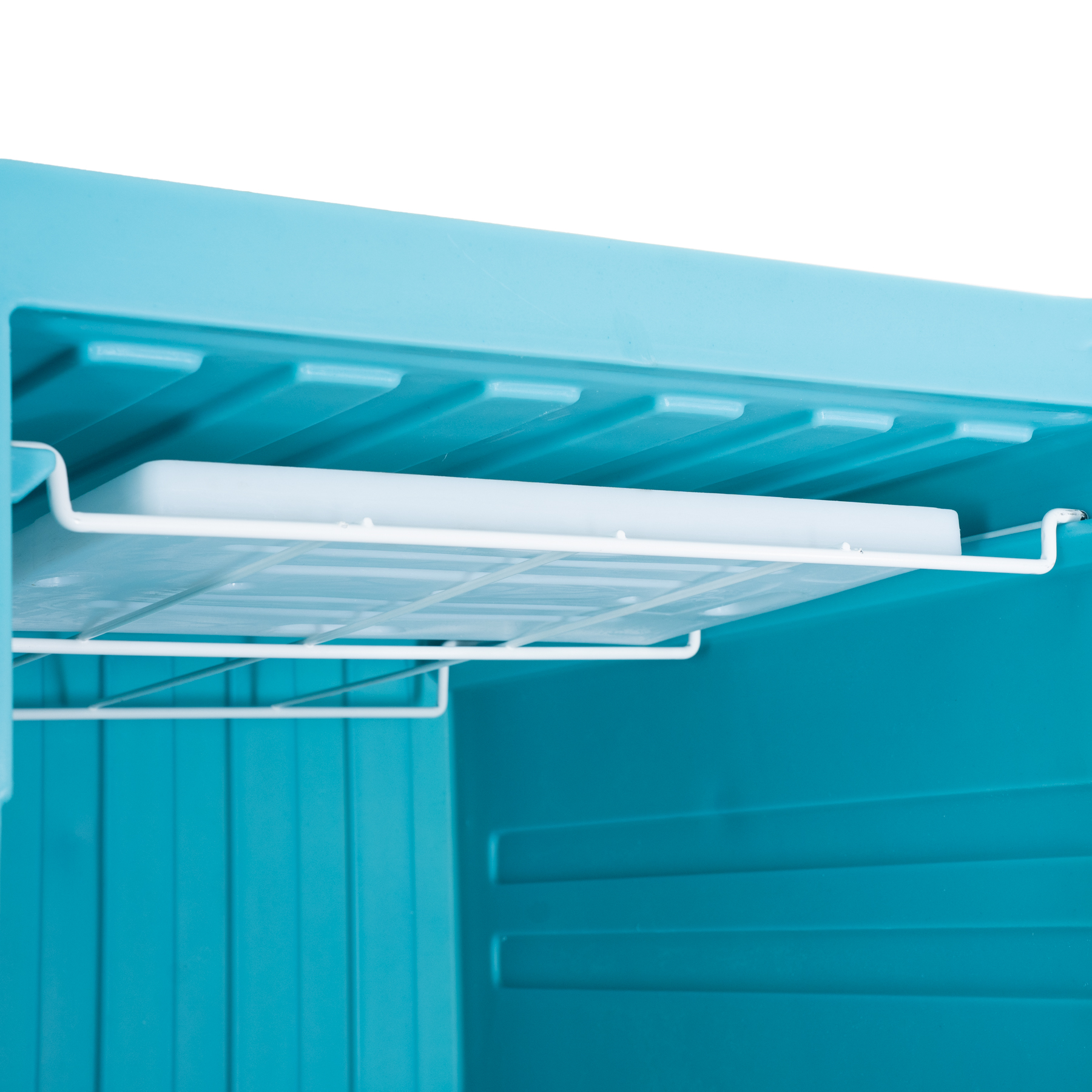

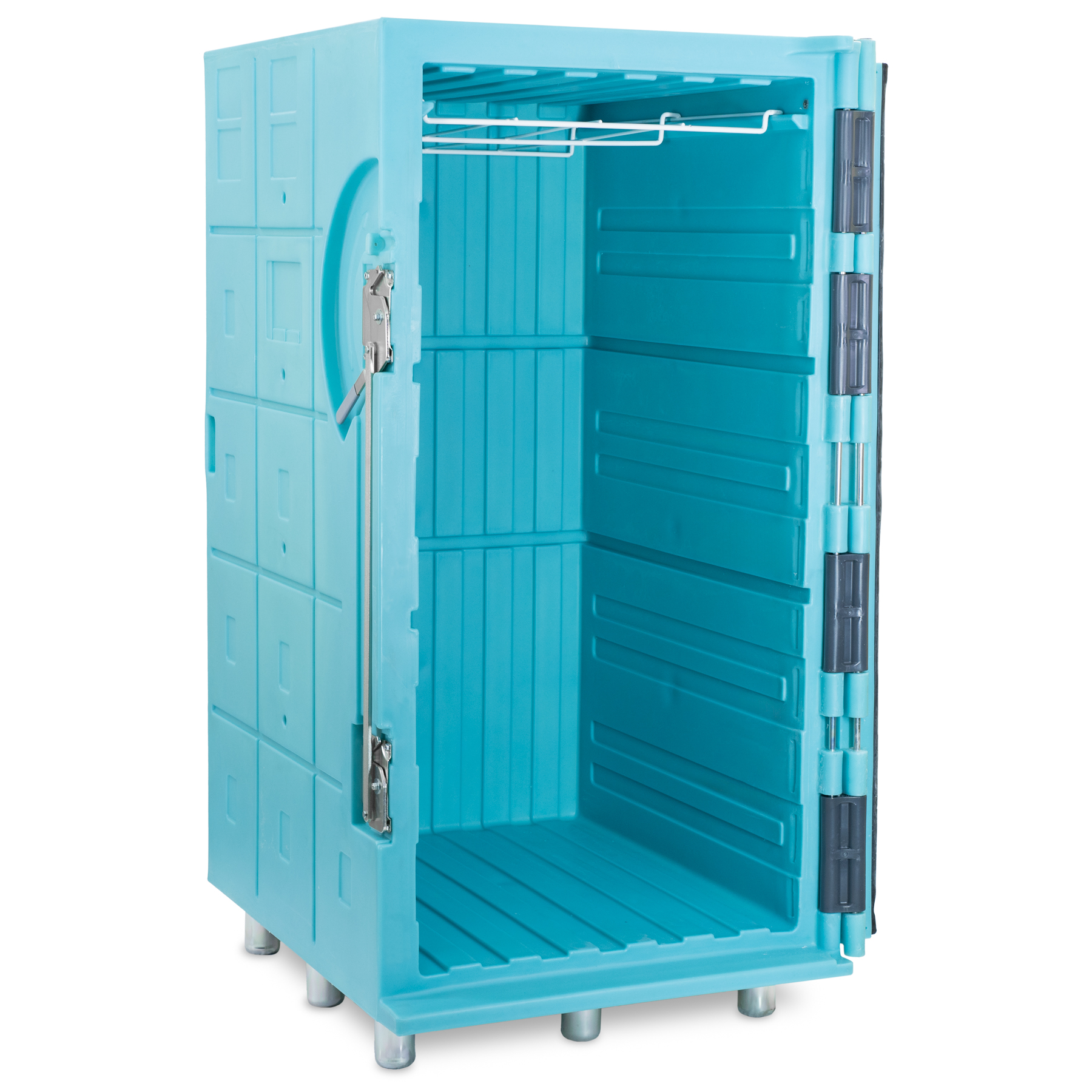

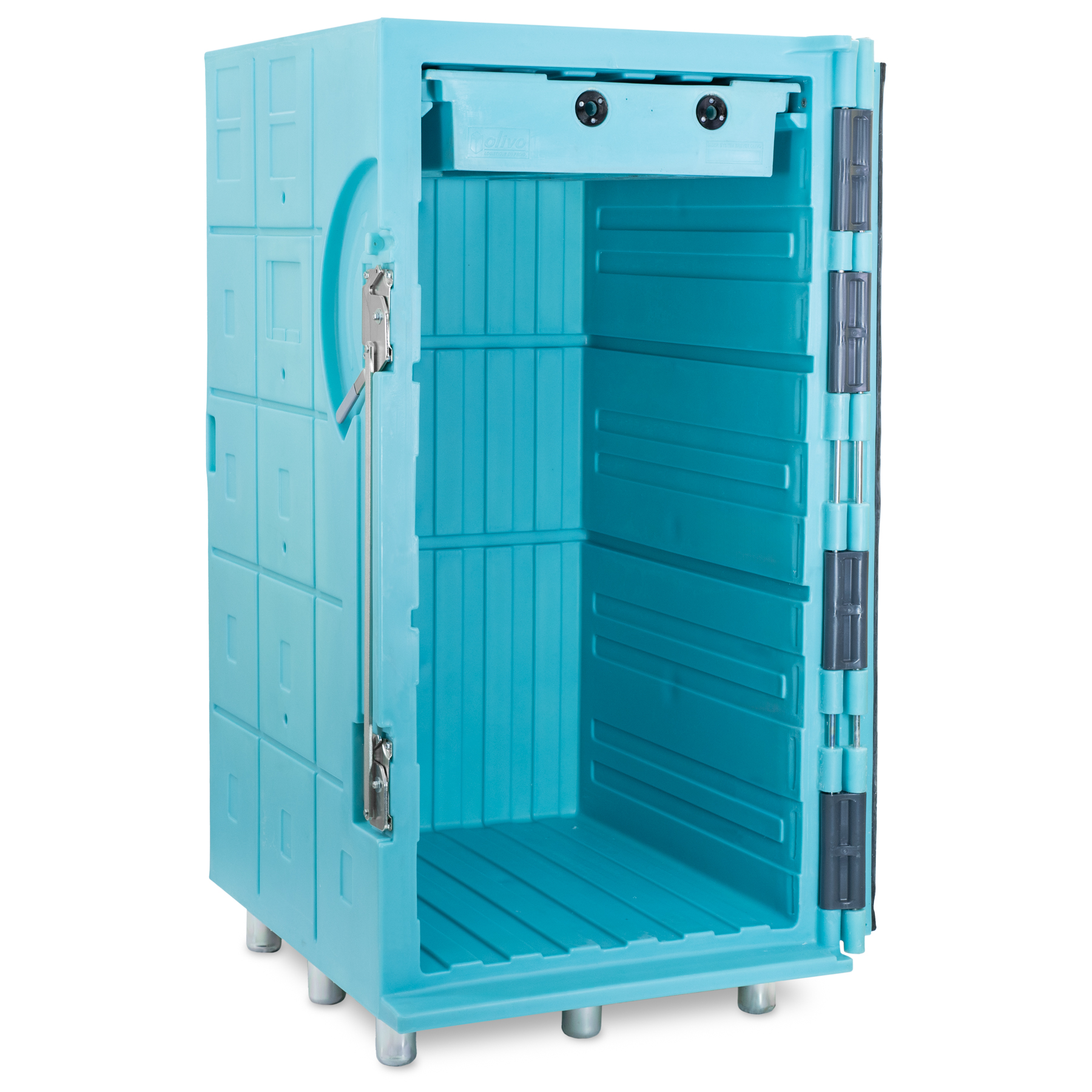

Accessory Eutectic plate rack TOP 370
Height : 1585 mm
Width : 690 mm
Depth : 1020 mm
Number of plates stored : up to 40
Handling handles : 4
Tare weight : 90 kg
Loaded weight : 442 kg

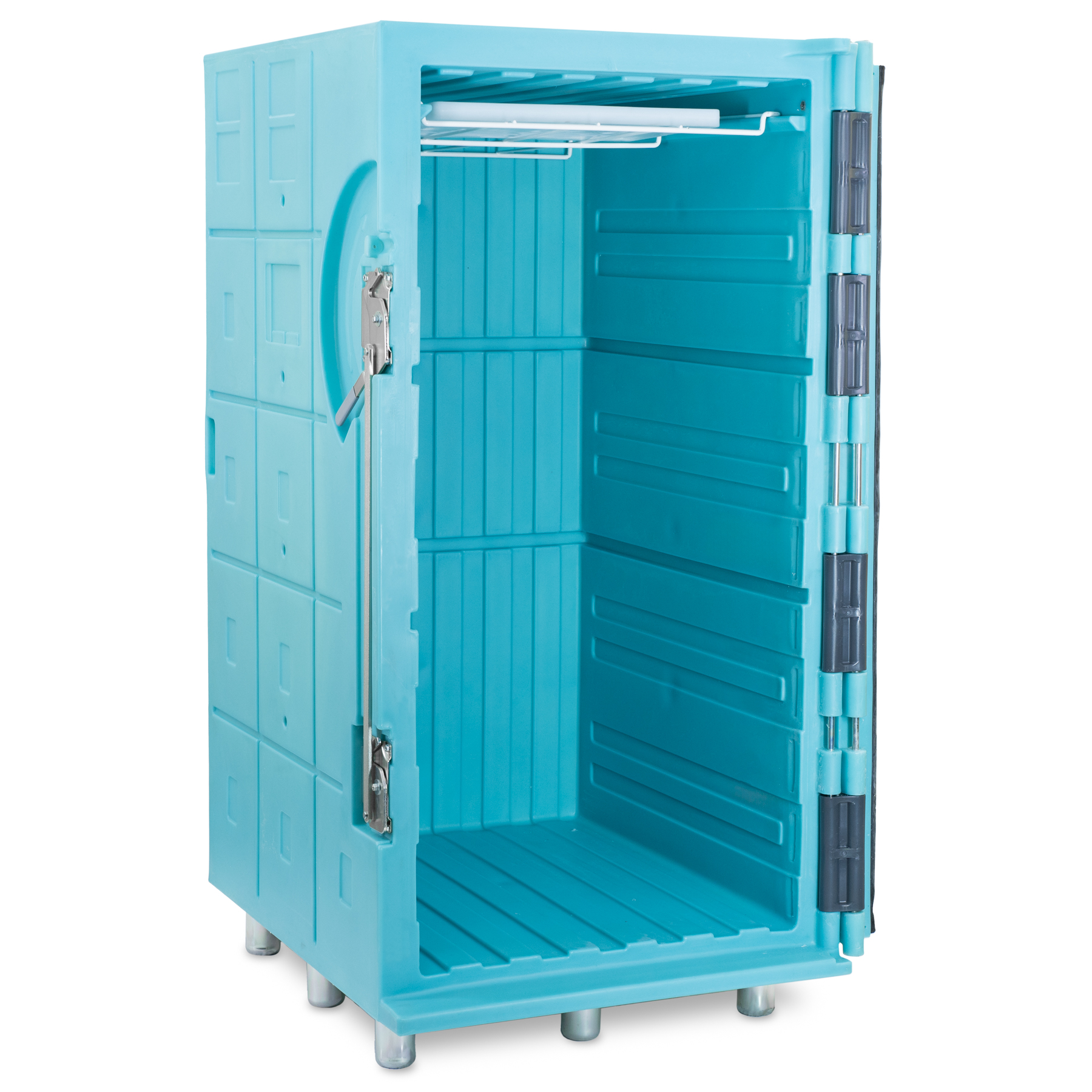

Insulated ROLL
ROLL 1410
- Ext. dim. (LxDxH) : 1000 x 1200 x 2000 mm
- Int. dim. (LxDxH) : 805 x 1050 x 1680 mm
- Int. Vol. : 1420 Liters
- Coef.K : 0.33 W/m².°C
- Unloaded weight : 170 Kg
- Insulating material : Polyurethane foam
- Wall material : Food-grade polyethylene
- Logistics format : ISO Pallet 1000 x 1200
- Application sectors : Food, Health et Logistics
-
Certification :
Options de personnalisation
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Engraved nameplate
Accessories compatible with this product
To add an accessory to your quote, please write your request in the text box provided.
-
-

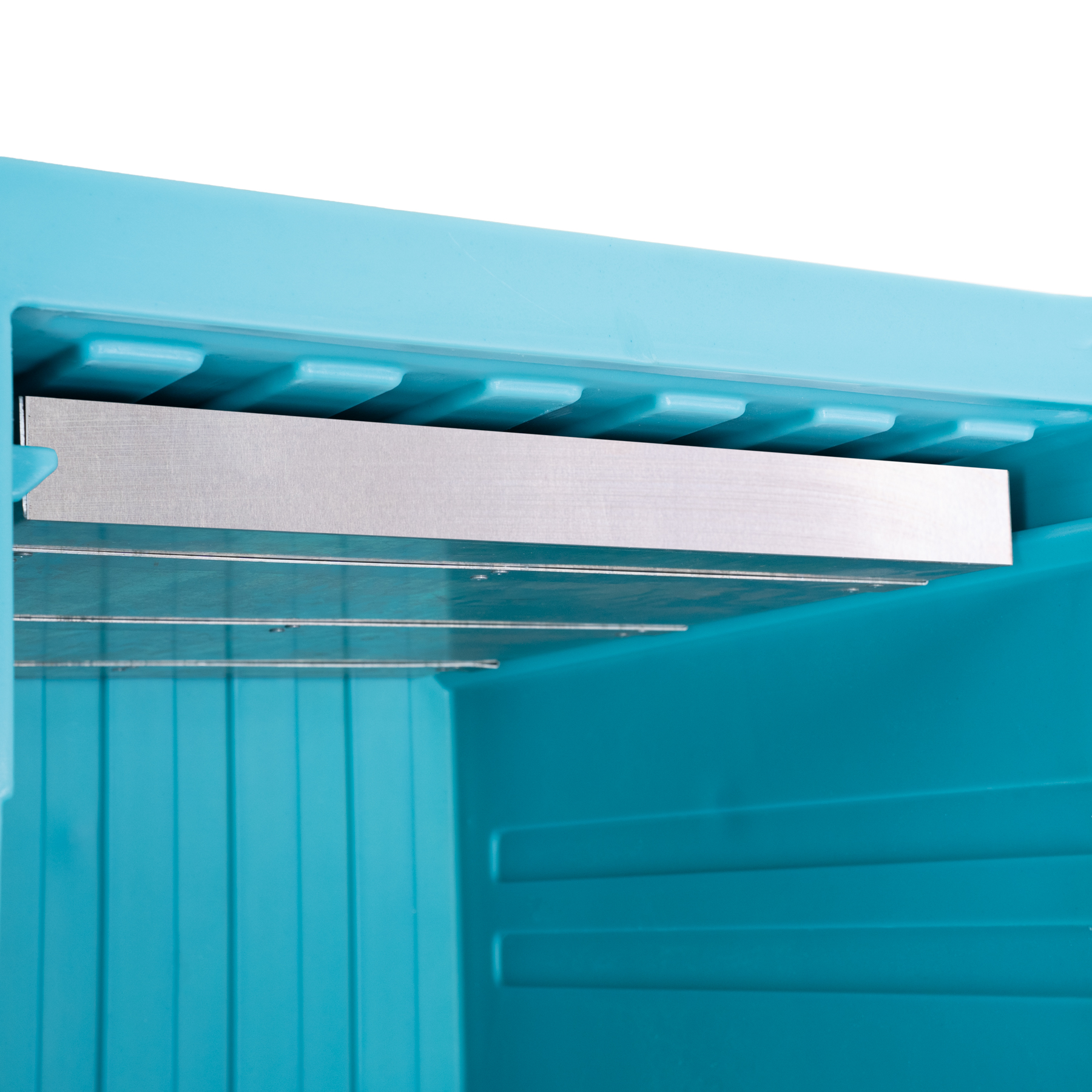

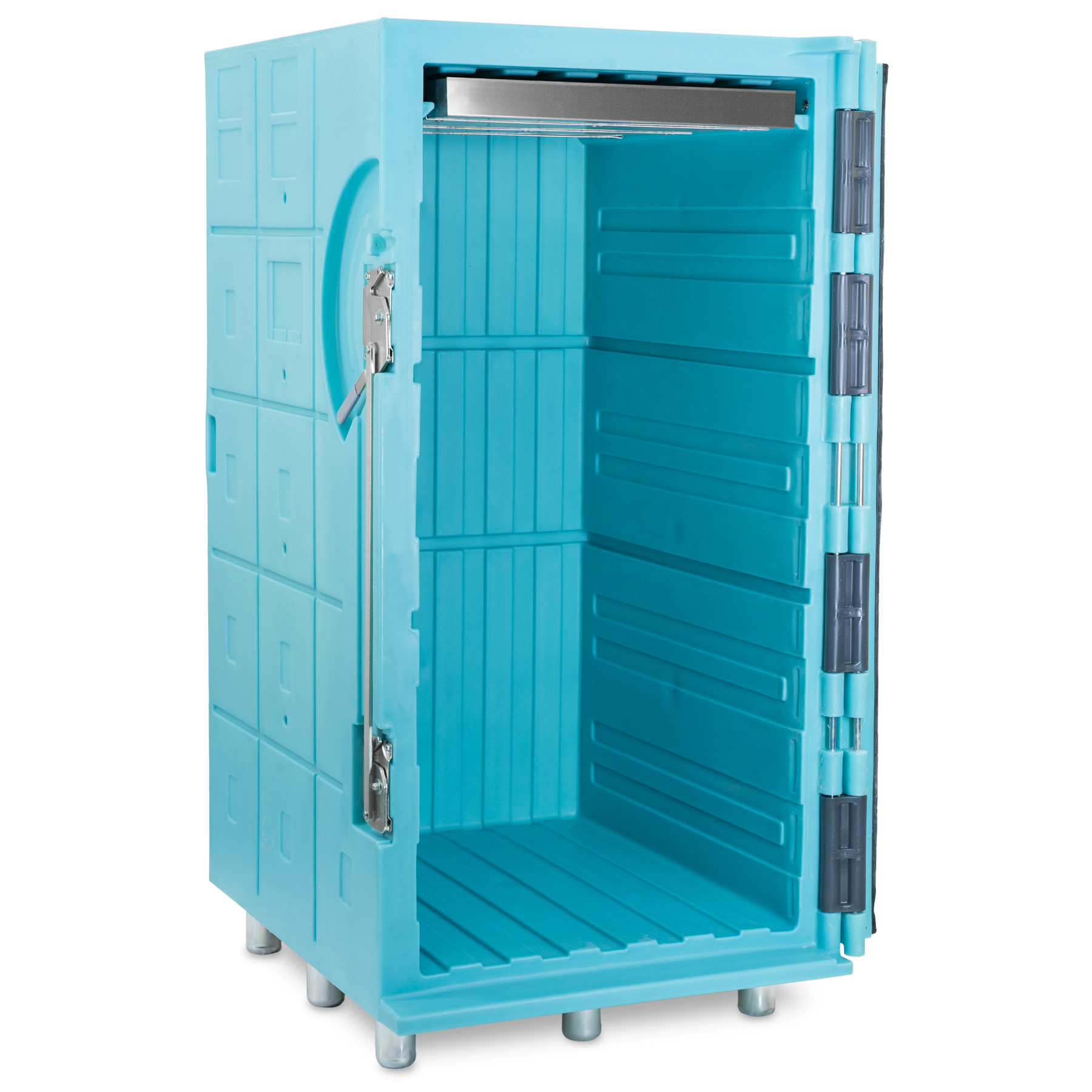

Accessory Dry ice drawer – fins
Finish : Aluminium
Dimensions : according to the ROLL model
Volume : according to the ROLL model
-

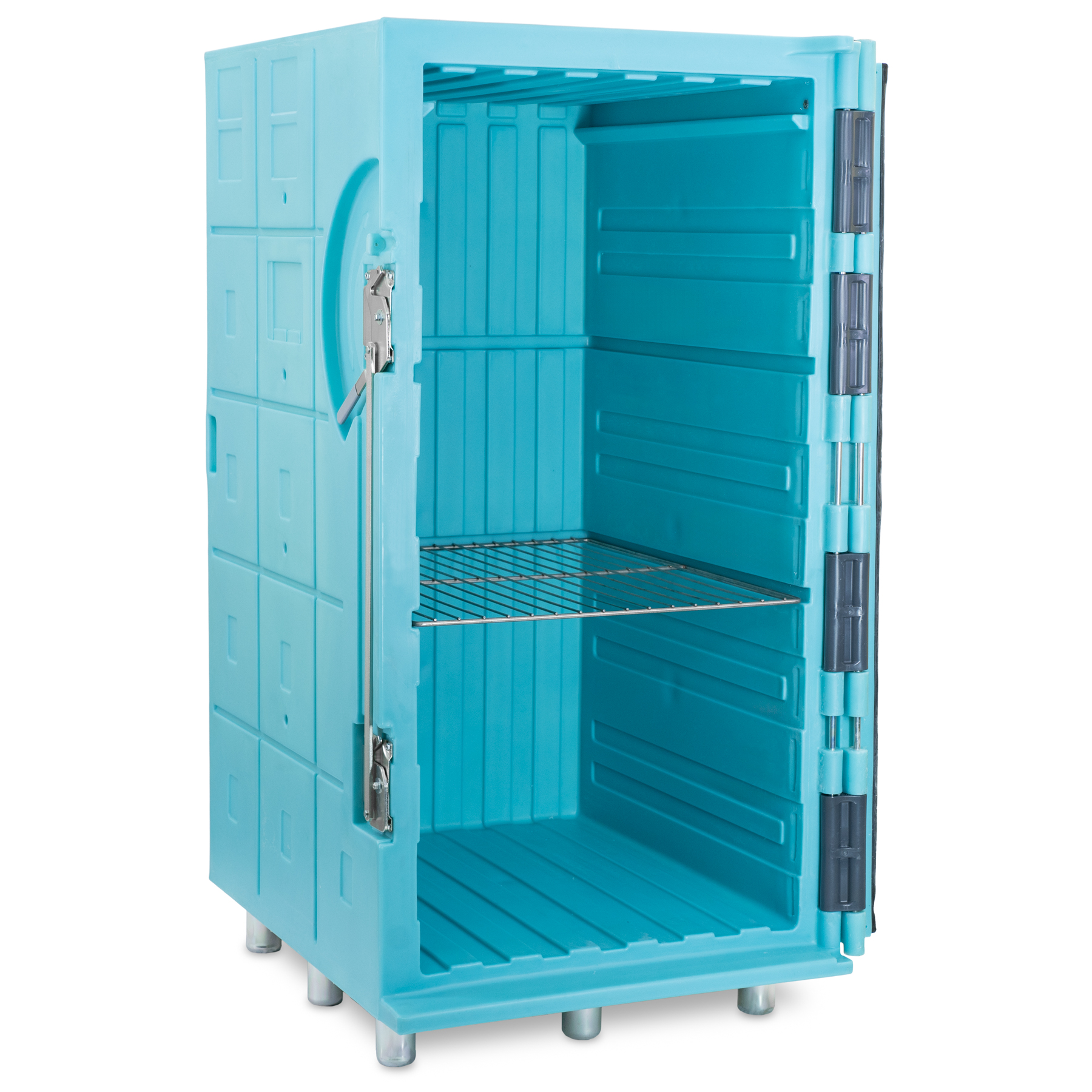

Accessory Intermediate grille
Finish : polyamide-coated steel
Dimensions : according to ROLL model
-
Accessory Feets 80 mm
Diameter : 80 mm
Height with base plate : 130 mm
Metallic :
Specifications
Double-wall rotomoulded PE/PU foam injection isothermal roll, a process in which Olivo is world leader. The one-piece structure ensures watertightness and avoids thermal bridges.

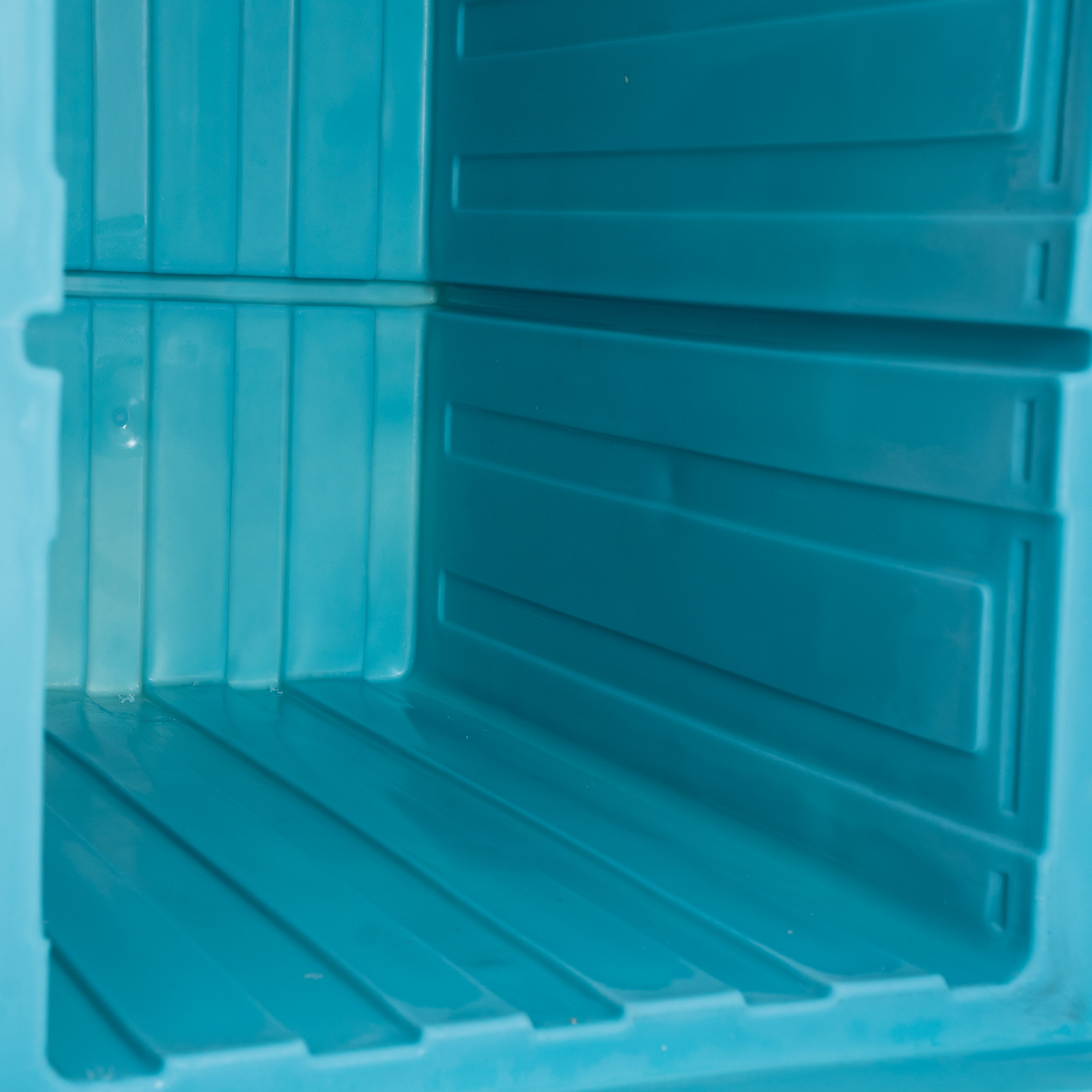

The inside of the box is grooved to create convection corridors to promote cold circulation.
Designed and manufactured in France
Our factory is located in the heart of the Saint-Etienne region, upstream from the Gorges de la Loire. For over 65 years, we have been working to keep our production facilities in Rouchonne, the cradle of plastics processing and industrial know-how.
Durability & maintenance
The rotational moulding process makes it easy to re-weld the material in the event of breakage. Regular maintenance and careful handling will extend the product’s useful life.
Know-how
Making an insulated container requires no fewer than 200 manual operations. These skills and techniques contribute to the quality and sturdiness of Olivo containers.
- One-piece rotational moulding. Grooved interior walls to encourage convection.

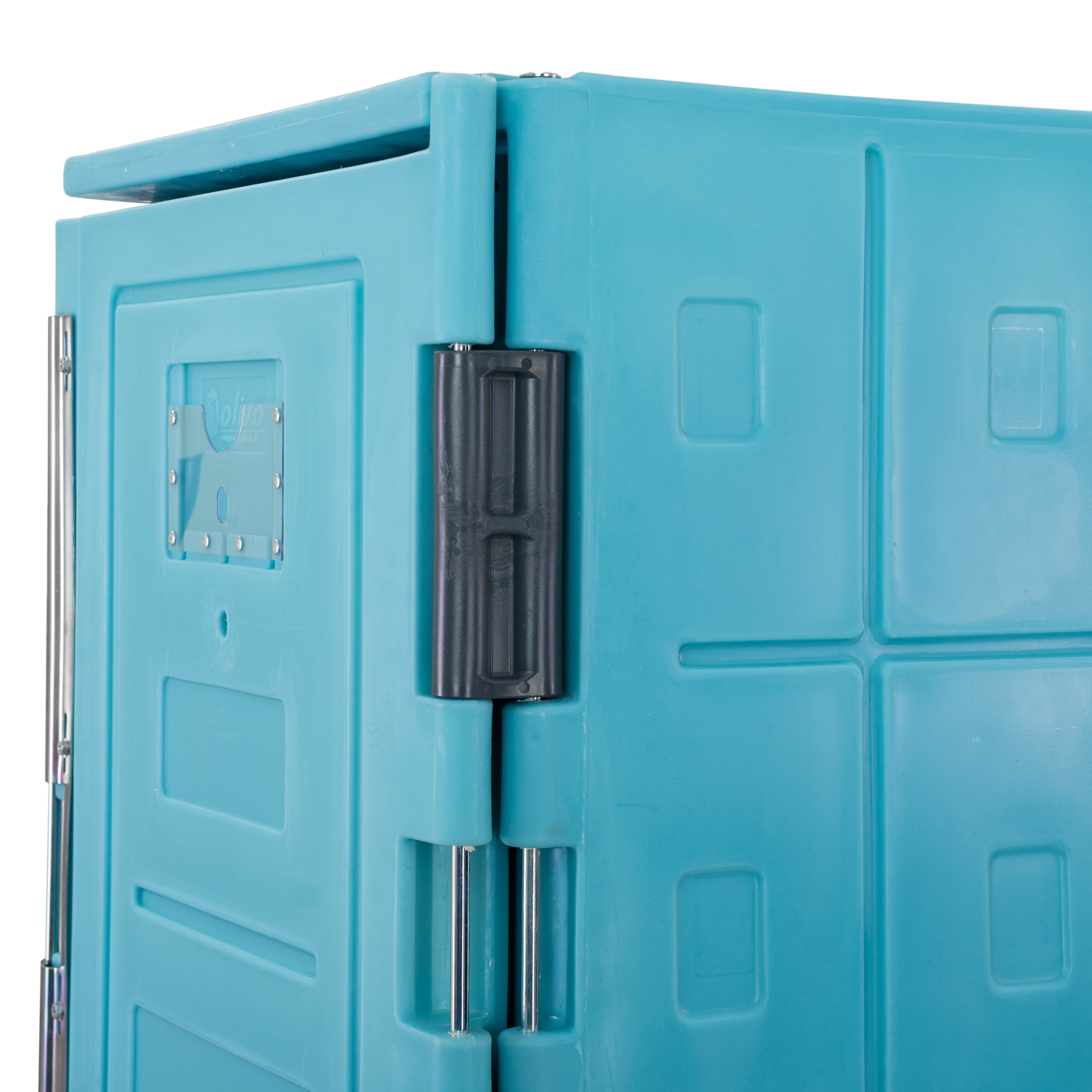

- Double-axis body/door articulation. 270° opening door

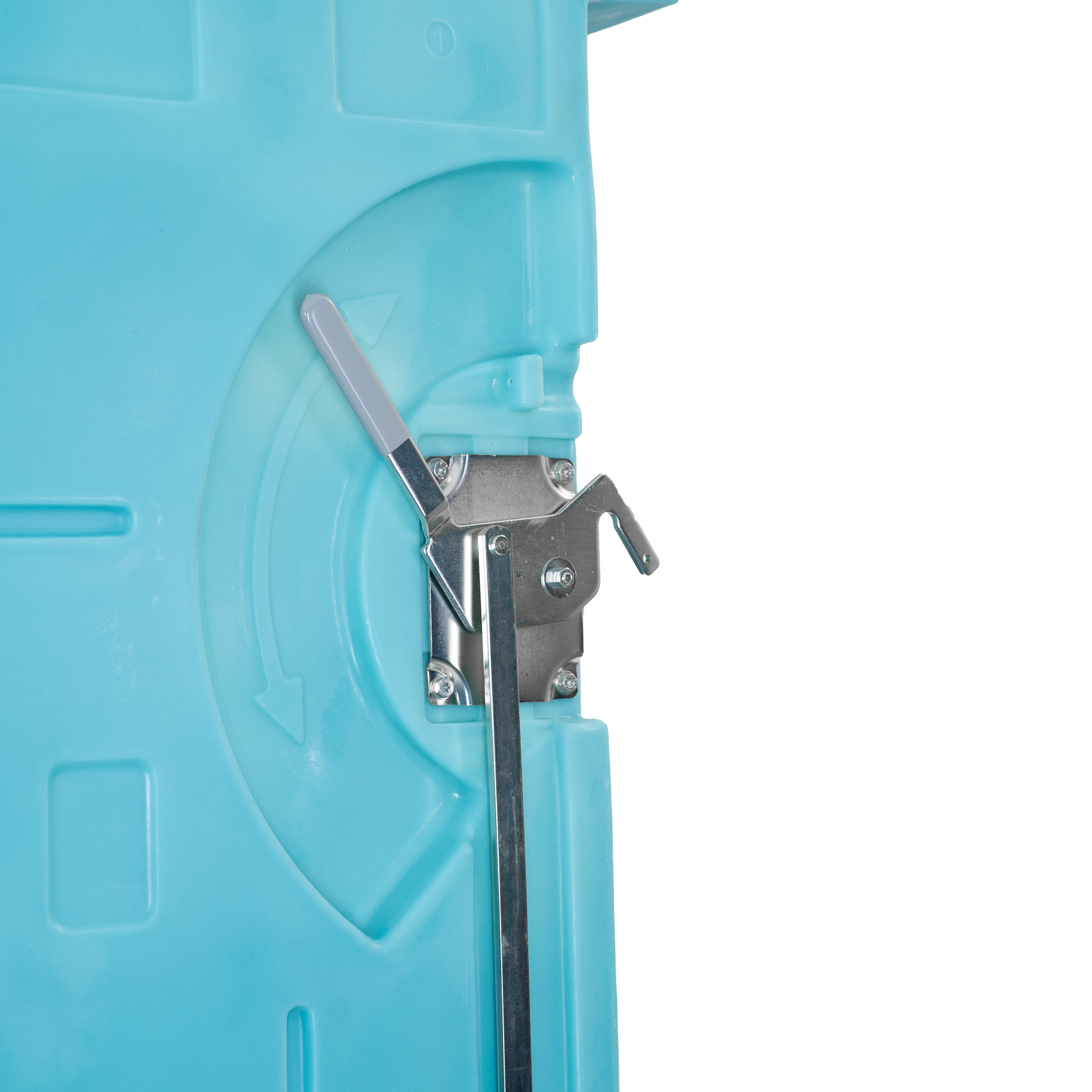

- Pelican” type 2-point quick-release fastener in zinc-plated, dichromate-coated steel

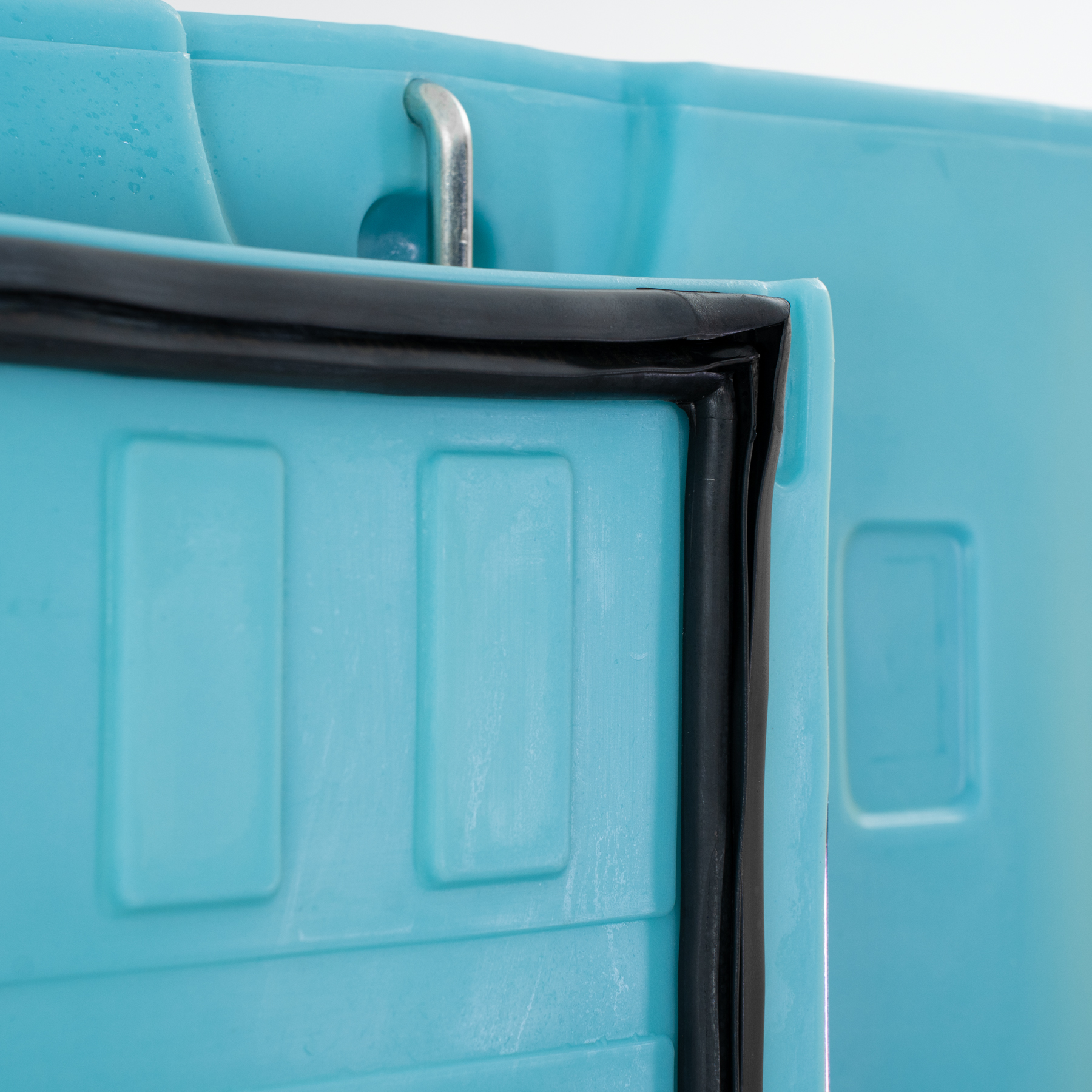

- EPDM seal in one-piece frame

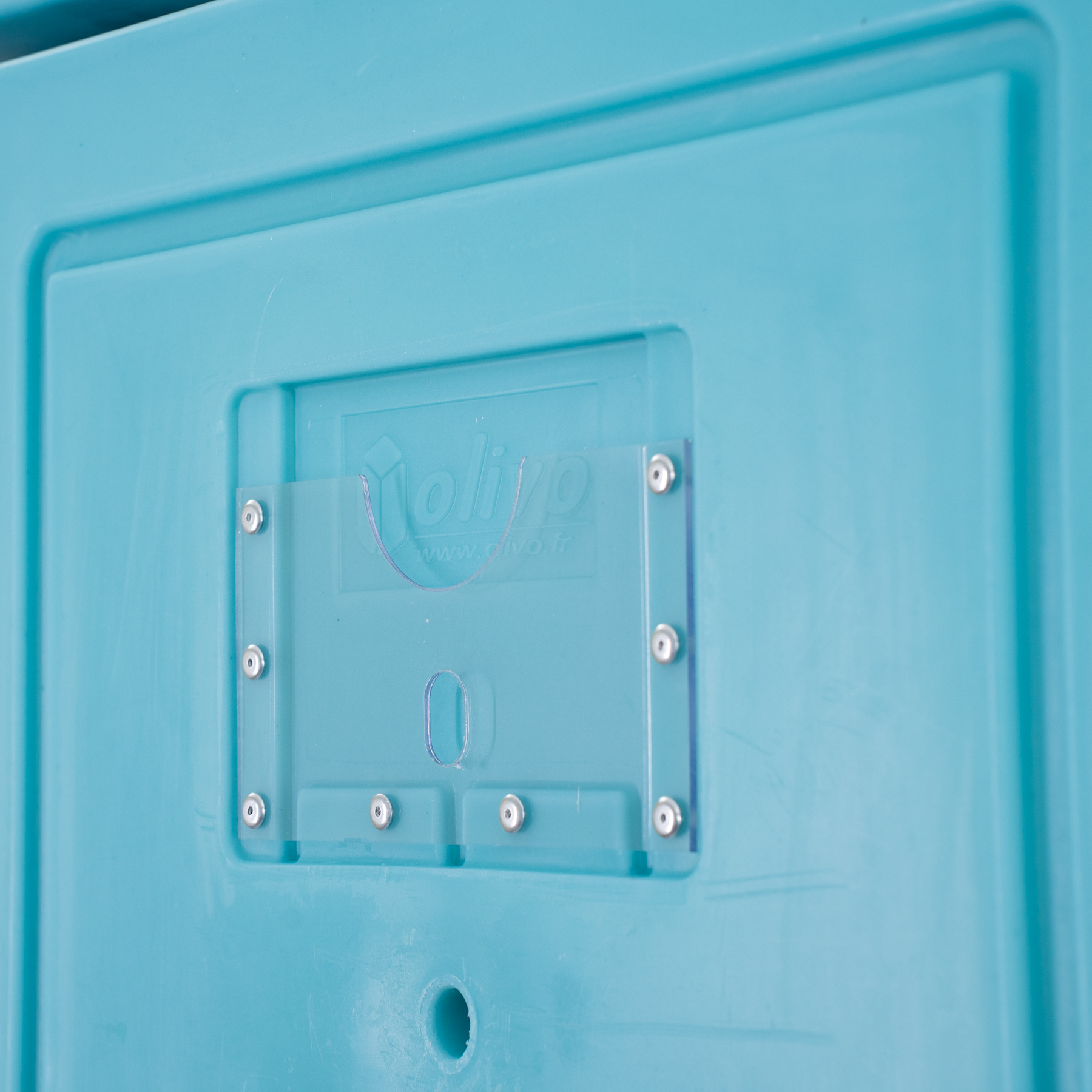

- Recessed label holder

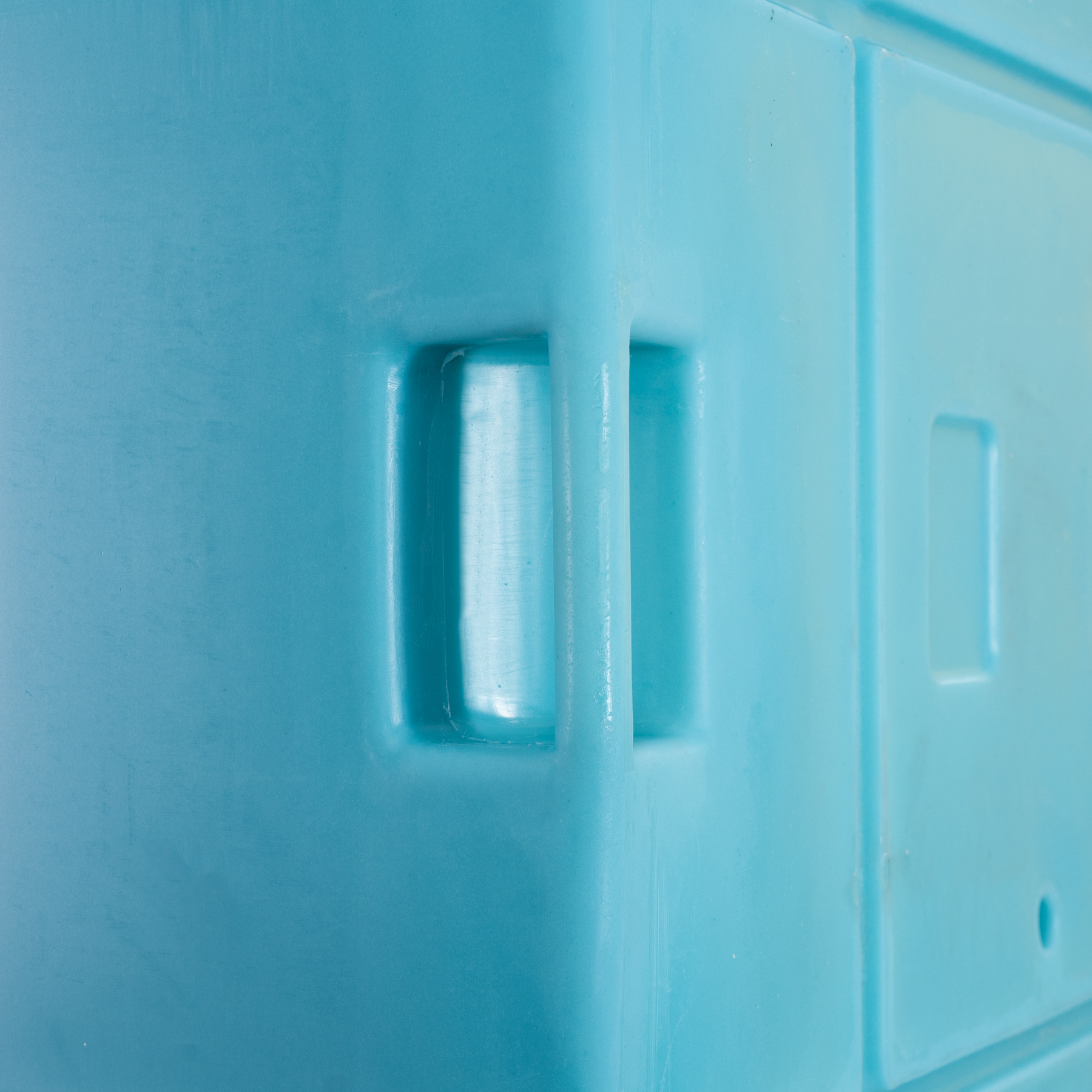

- 2 moulded-in, recessed handles

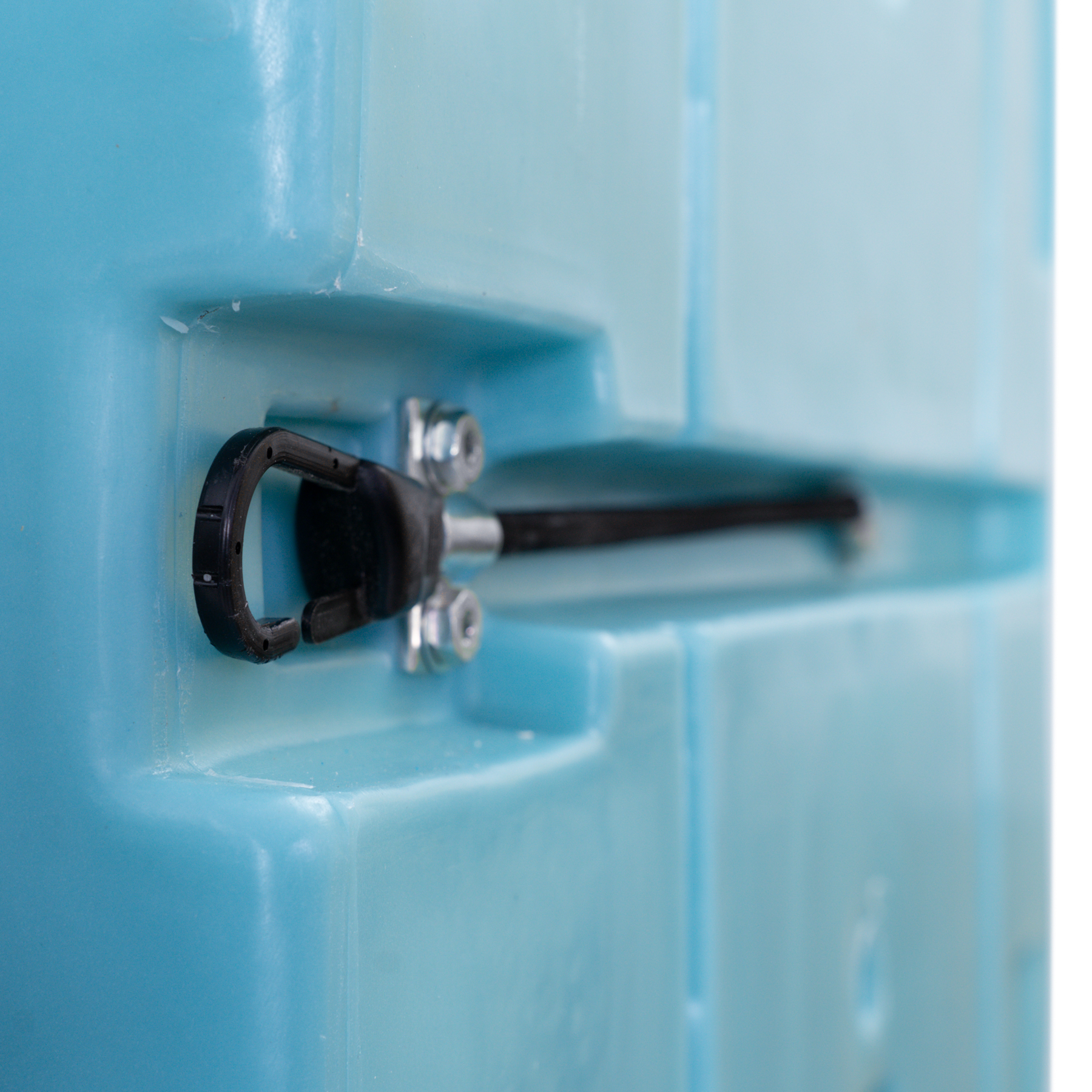

- Half-height door stop system for locking in open position
- 9 Ø 80 mm metal feet
Frequently asked questions about this product
-
Isothermal containers
How to choose a model of insulated container ?
The choice of an insulated container rests on several parameters which will be analysed with a member of our team:
- Type of products to be transported;
- Volume of products to be transported and their packaging;
- Type of vehicle used to transport the insulated container;
- Organisation of collection and/or delivery rounds;
- …
The choice of the container is also associated with that of the cold source. This must be selected based on different data:
- Time in transit;
- Legal temperature of the product to be transported;
- External temperature and humidity conditions;
- …
Before making your final choice, we strongly recommend that you contact a member of our team, who will be able to support you in planning and optimising your cold chain logistics.
-
Isothermal containers
Do you offer an annual service
Yes. To prolong the useful life of the insulated containers and to combat MSDs, Olivo offers a fleet maintenance service. Seals, walls, casters, feet and gas springs all need to be checked regularly to guarantee they are in good condition and working properly. The performance and ease of use of the equipment depends on regular, serious technical follow-up. For more information about this service, go to Maintenance & Repairs.
You can contact your account manager who will help you to determine which offer is best suited to your fleet and your actual needs.
-
Isothermal containers
How can an insulated container be recycled ?
As part of its environmental policy and to meet Extended Producer Responsibility requirements, Olivo offers a service dismantling insulated containers and reusing, recycling or valorising its components.
When must an insulated container be retired and recycled?
- If your use is subject to the ATP, your insulated container is over 12 years old and you wish to use it for journeys over 80 km;
- If the extent of the wear and tear on the insulated container means it can no longer be repaired;
For more information on this service, go to Recycling & end of life.
To recycle your insulated container, you will need to contact your account manager, who will guide you through the dismantling procedure.
