Ext. dim. : 555 x 360 x 331 mm,
Volume : 34 L,
Cold sources : eutectic plate TOP 64 et SiberCity®,
View detailsInsulated BOX

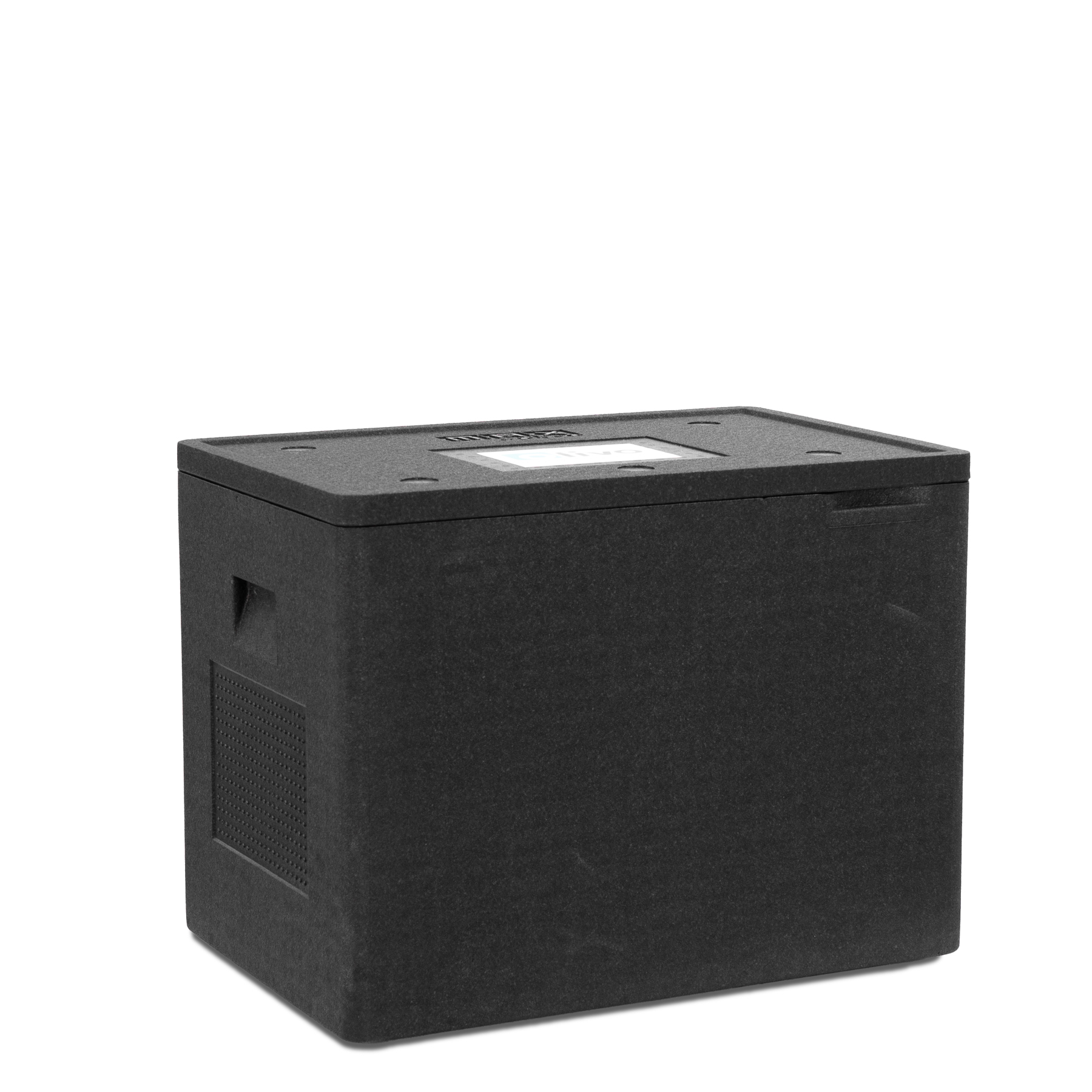

BOX 64
- Ext. dim. (LxDxH) : 595 x 395 x 455 mm
- Int. dim. (LxDxH) : 505 x 320 x 370 mm
- Int. Vol. : 60 Liters
- Unloaded weight : 2.1 Kg
- Insulating material : Polyurethane foam
- Wall material : Food-grade polypropylene (PPe)
- Logistics format : Quarter Euro-pallet 800 x 1200
- Application sectors : Cryogenics, Food, Health et Logistics
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Marking of the logo in the mass
Engraved nameplate
Specifications
- Double-axis body/door hinge. 270° opening door
- Pelican” type 1-point quick-release fastener in zinc-plated, dichromate-coated steel
- Recessed frame, corrosion-resistant steel, fitted with 2 fixed wheels and 2 swivel wheels ø 100 mm
- EPDM seal in one-piece frame. Door open stop system
- Built-in label holder

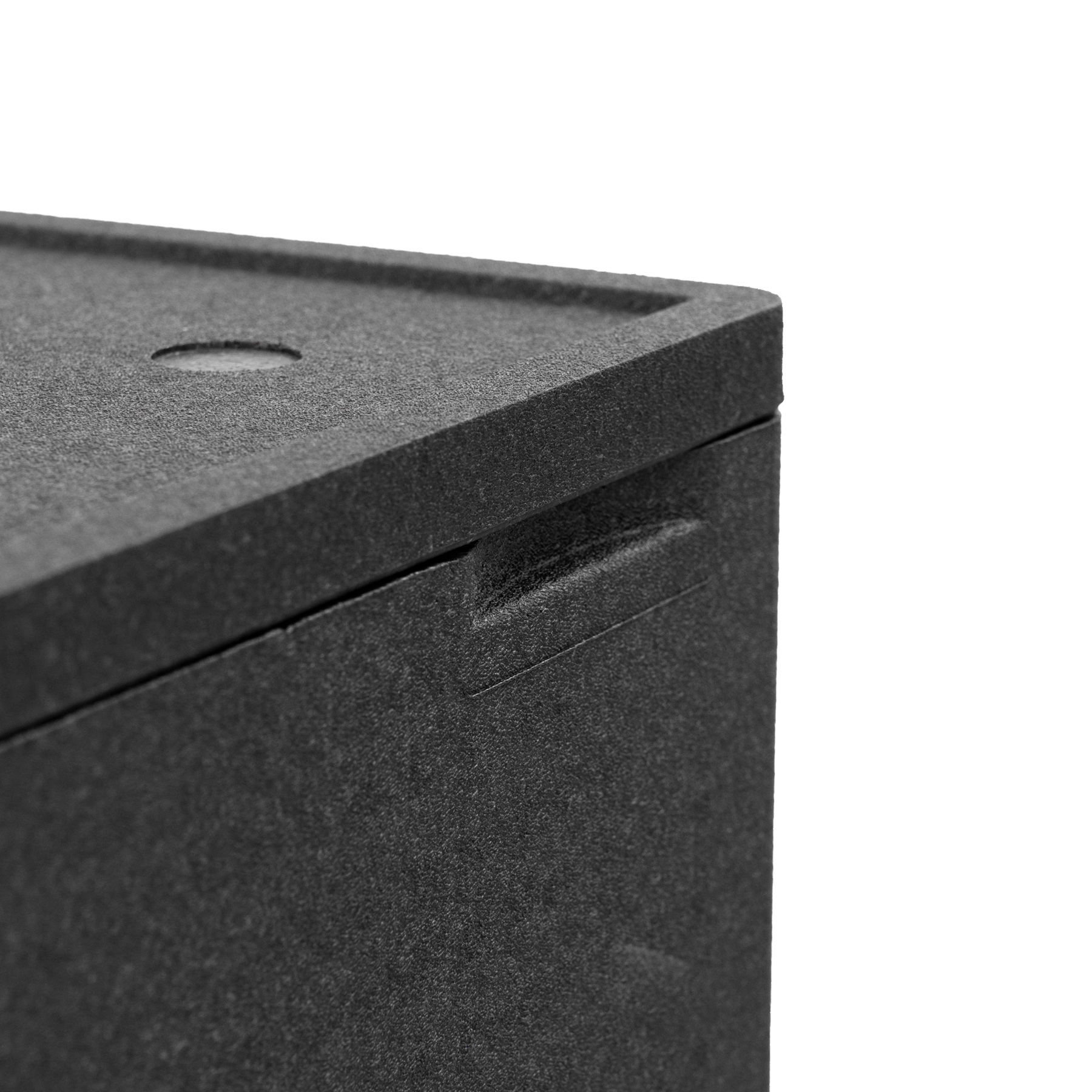

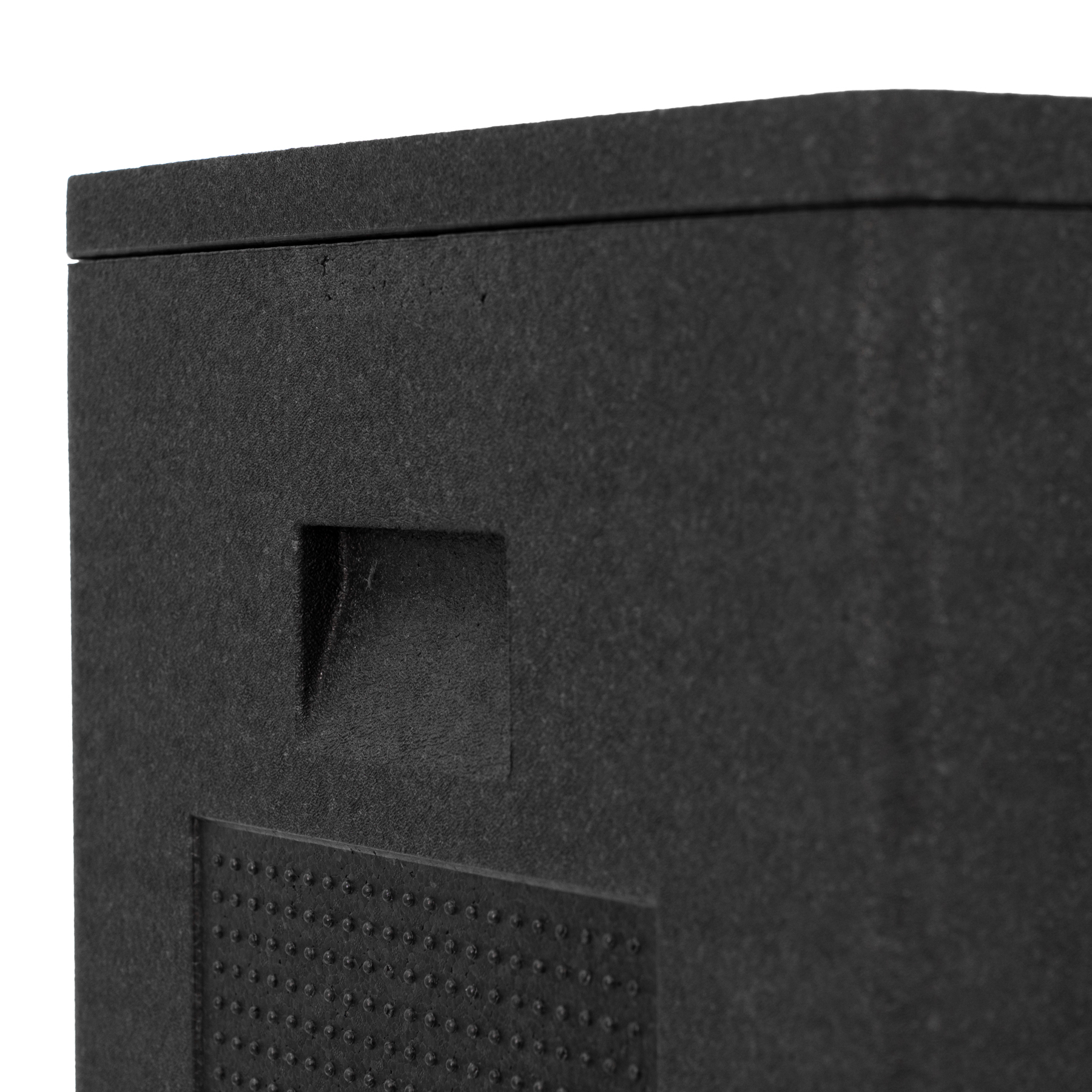

- 2 recessed moulded handles

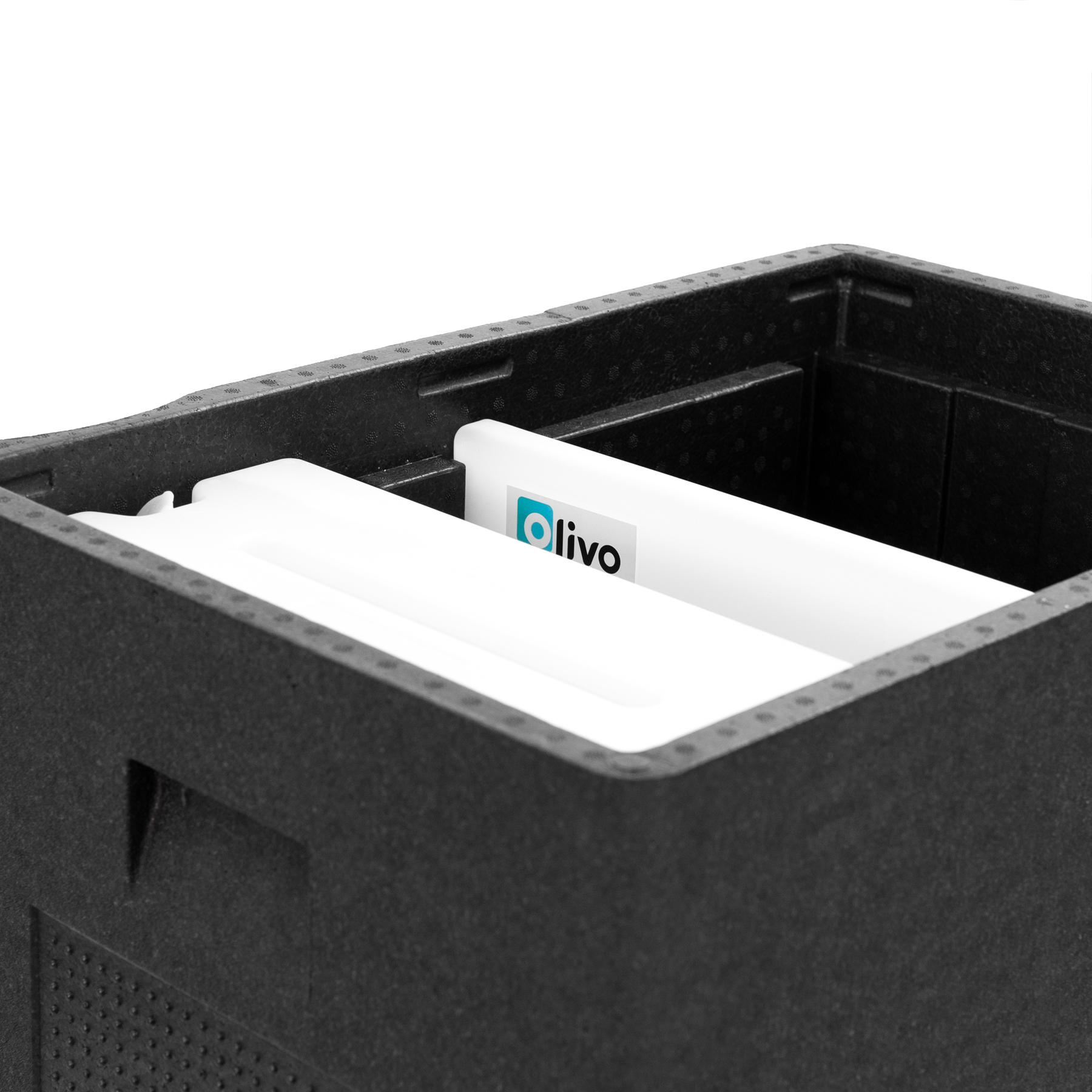

- Moulded eutectic plate support
Frequently asked questions about this product
-
Isothermal containers
Can eutectic plates be stacked in a BOX ?

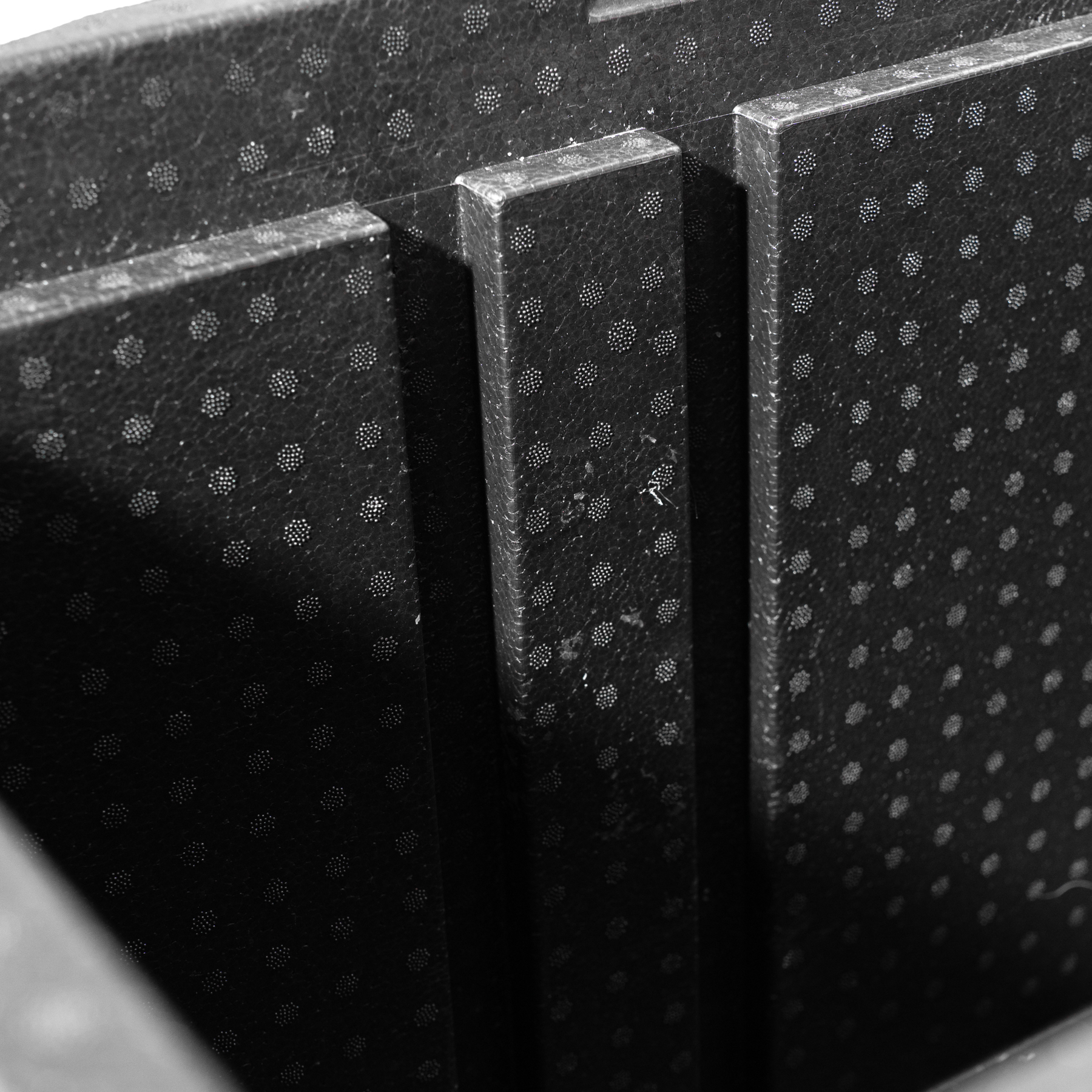

It is not recommended that you place eutectic plates one on top of the other. The purpose of a eutectic plate is to diffuse cold. And that diffusion will not be optimal if the plates are stacked. Each BOX is designed with a specific space for the eutectic plate. This can be a net under the lid or moulded-in slots. These locations are chosen to optimise the diffusion of the cold by creating convection channels that allow the cold air to circulate evenly.
-
Isothermal containers
Is it possible to transport dry ice in a BOX 34 ?
Yes. Olivo BOX containers are insulated boxes made of expanded polypropylene [EPP], a strong, 100% recyclable material. The mechanical properties of EPP [strength and stability] allow you to transport sachets of pellets directly in the BOX, with no need for any intermediate protection. In contact with cold, the expanded polypropylene hardens to become even stronger.
-
Isothermal containers
Can I use BOX containers on my cargo bike ?
Olivo’s BOX containers are designed and made in a universal logistics standard format, Euronorm 600 × 400 mm, and are suitable for cargo bikes and trikes. BOX containers are a solution particularly suited to last mile cold chain logistics, thanks to:
- Their ergonomics – they are easy to handle and carry;
- The light weight of the BOX containers, which reduces the overall load to be carried on the bike.
Combined with the right cold source, a BOX can be used to transport chilled and frozen products. The quantity and the type of cold source will depend on your logistics project. The entire Olivo team is here to help you plan your cold chain logistics.
To find out more
To better support you in your cold chain logistics project, discover our library of technical resources: blog, glossaries, white papers, and case studies.
