View detailsInsulated BAC
BAC 70
- Ext. dim. (LxDxH) : 680 x 560 x 850 mm
- Int. dim. (LxDxH) : 477 x 363 x 620 mm
- Int. Vol. : 105 Liters
- Coef.K : 0.4 W/m².°C
- Unloaded weight : 30 Kg
- Insulating material : Polyurethane foam
- Wall material : Food-grade polypropylene (PPe)
- Application sectors : Cryogenics, Health et Logistics
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Marking of the logo in the mass
Engraved nameplate
Specifications

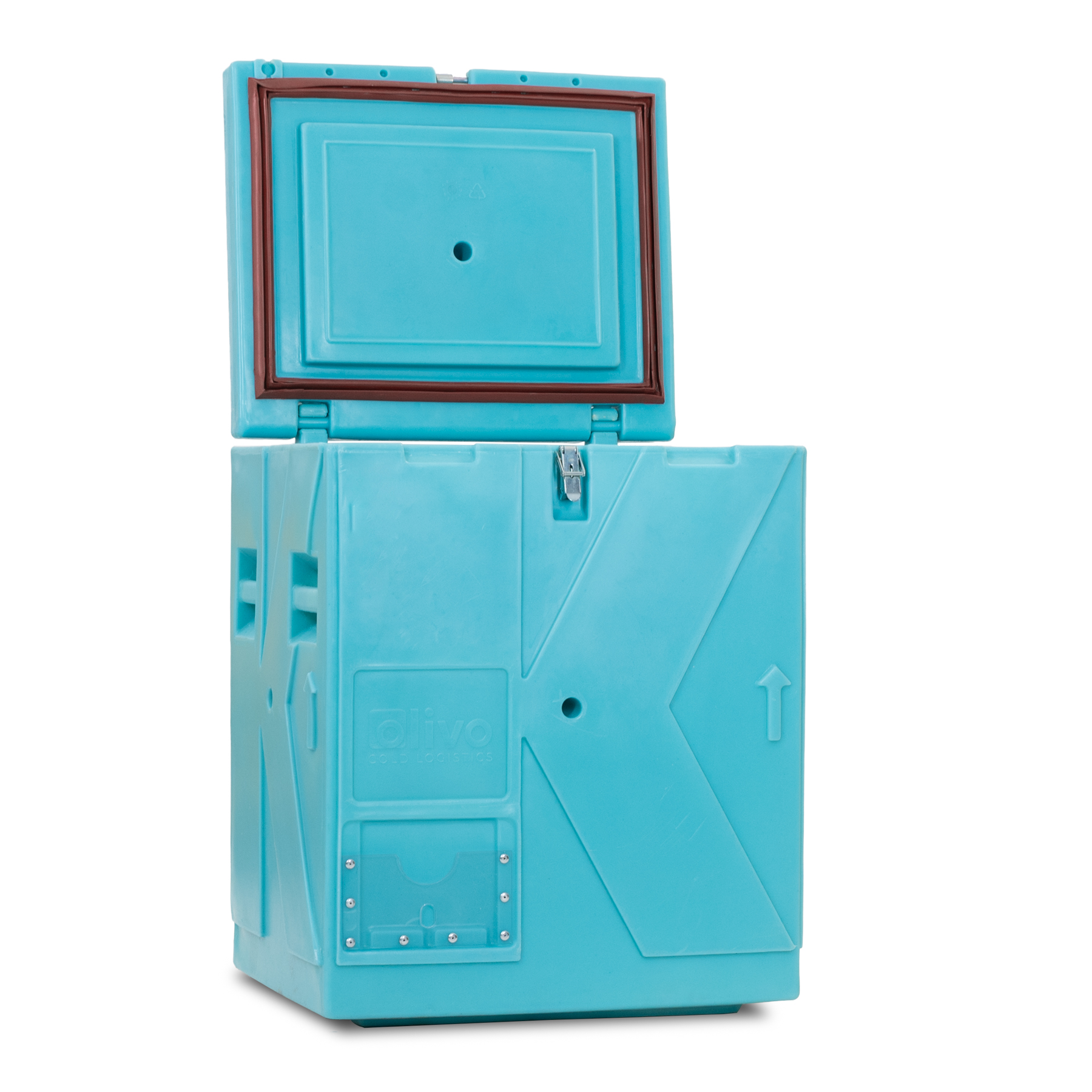

With external dimensions of 680 x 560 x 850 mm, this isothermal container has an internal volume of 106 litres and weighs 30 kg when empty. It is ideal for transporting pharmaceutical products and dry ice. It uses the Top 70 eutectic plate.
The BAC70 is the ideal solution for those looking for a high-performance isothermal storage option. Made from food-grade polyethylene, this durable, easy-to-clean insulated container is perfect for commercial and logistics use.
The BAC70 features internal convection grooves, a eutectic plate holder and a rotomoulded hinged box/lid that opens to 115° for easy access to your stored items. In addition, the unit is fitted with four moulded-in handles for smooth handling and safe transportation.
With an internal volume of 106 litres, the BAC70 is the ideal choice for those looking for a reliable isothermal storage option.
Up to 3 eutectic plates can be used simultaneously. The amount of cold can be set according to your target holding time.
Contact our team for personalised support.
- Body and lid in one-piece rotomoulded food-grade polyethylene.
- Internal convection grooves.
- Moulded eutectic plate support.

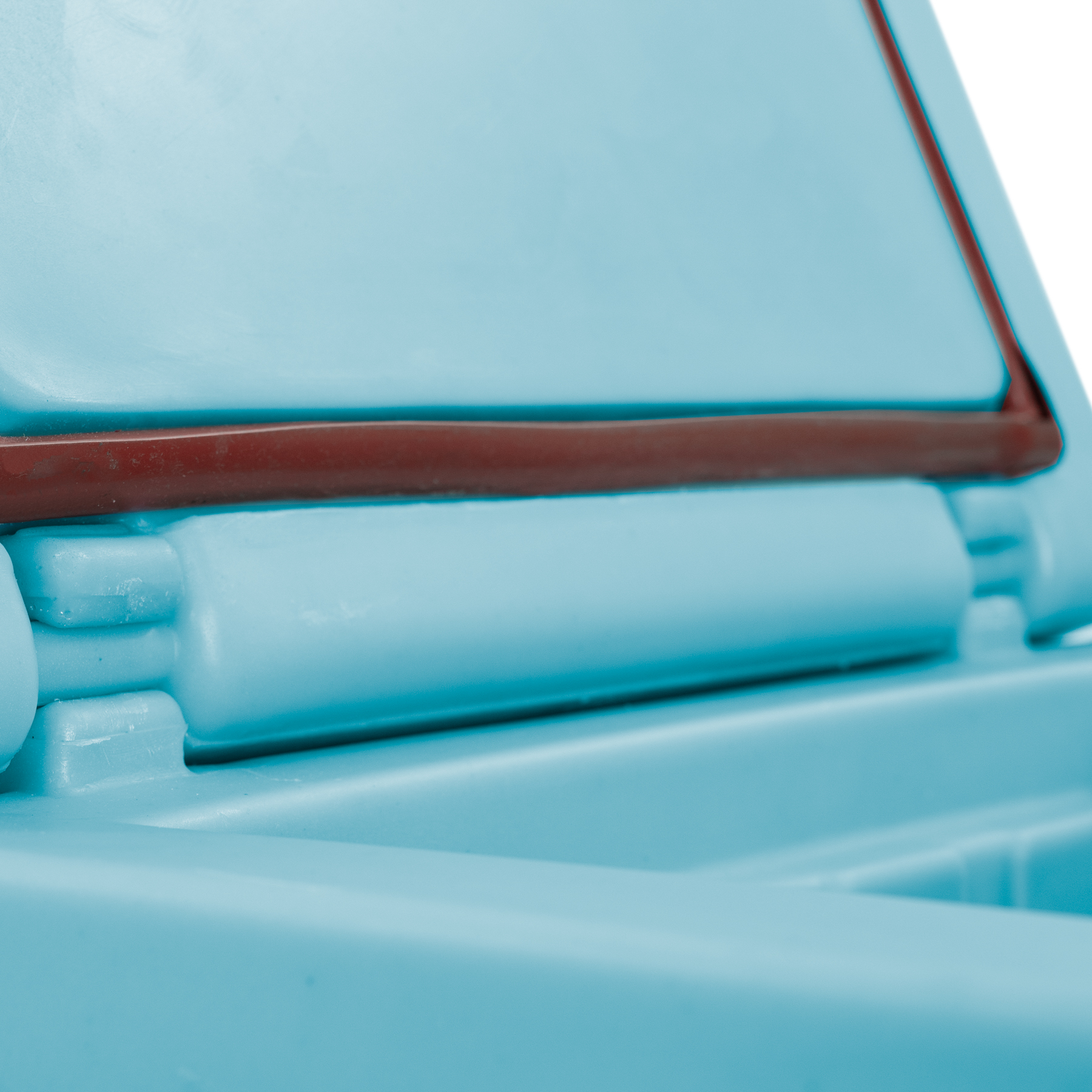

- Body/lid hinge from moulding, opens to 115°.

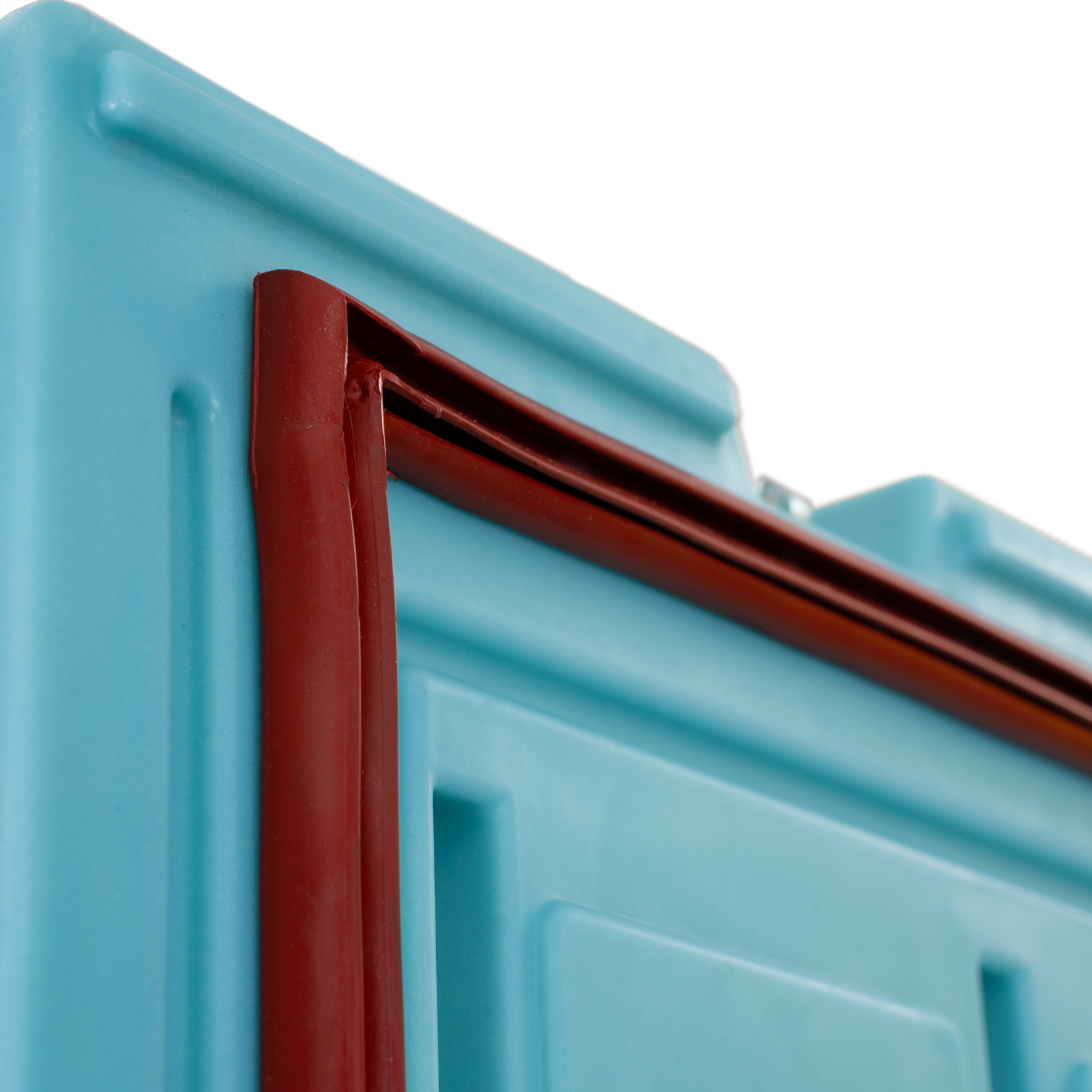

- One-piece silicone frame gasket.

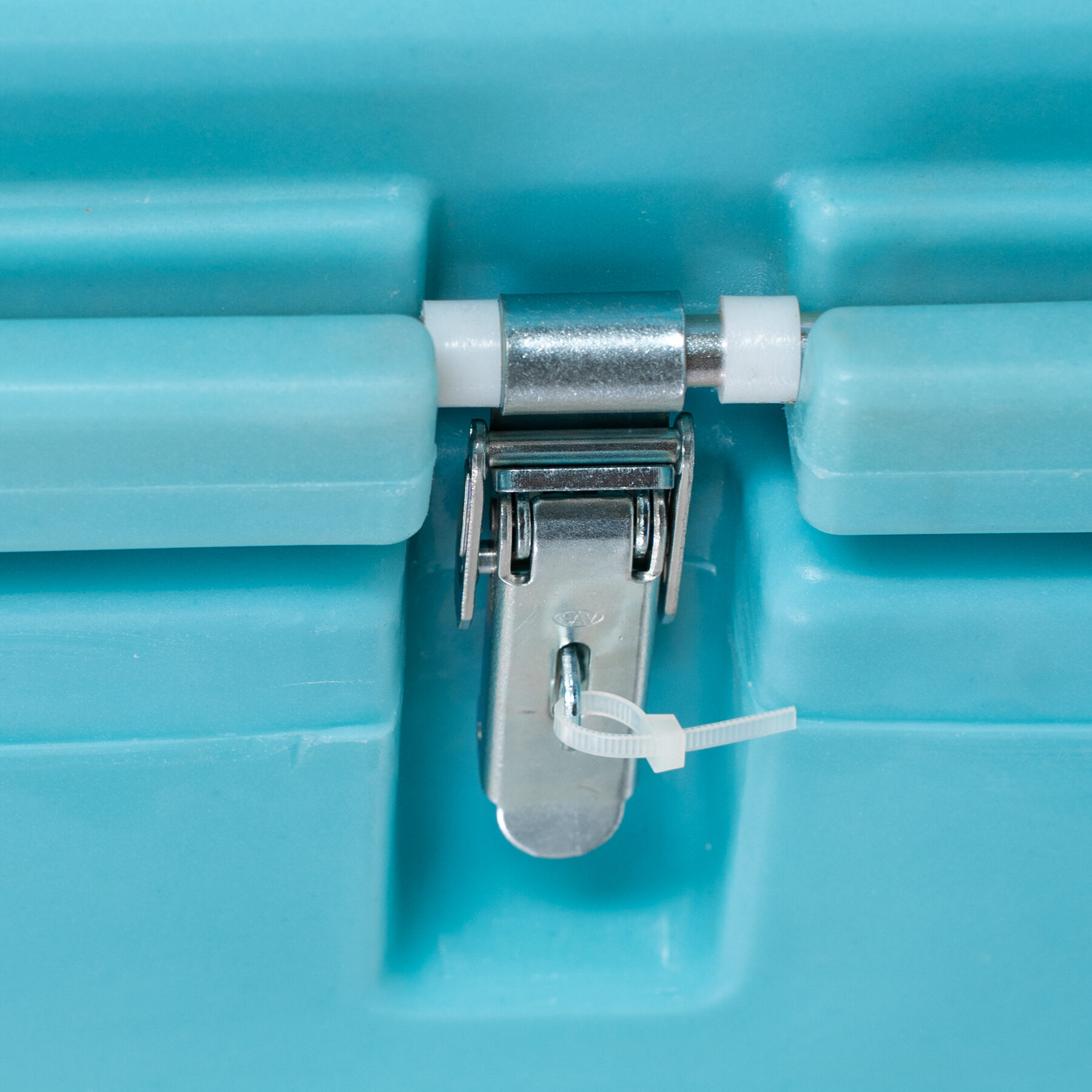

- Recessed locking toggle (space for seal).

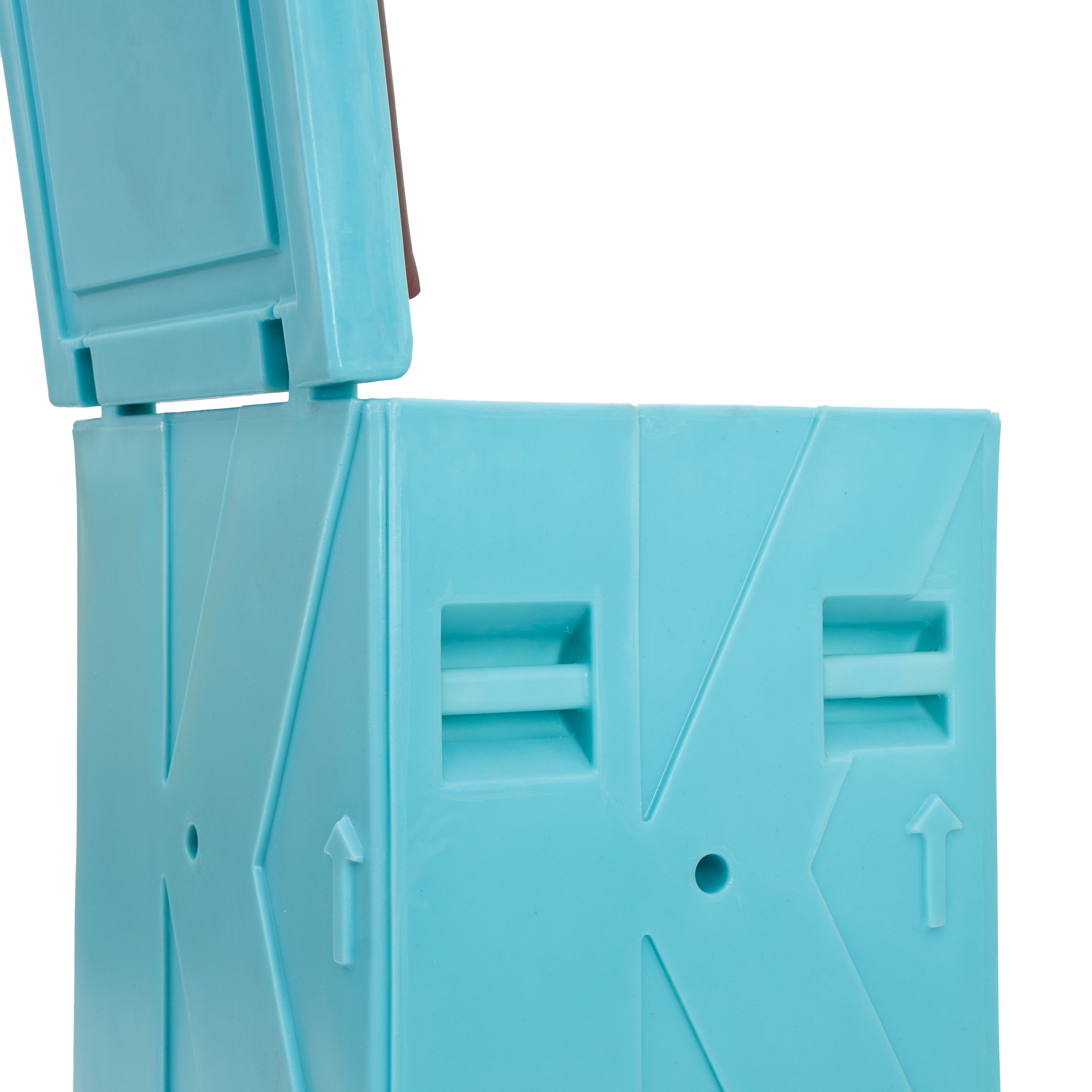

- 4 moulded handholds.
Frequently asked questions about this product
-
Personalization
Is it possible to order made-to-measure containers ?
Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.
-
Personalization
Can the insulated container be pierced or drilled through?
No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.
-
Isothermal containers
What preventive operations are recommended to guarantee the longevity of an insulated container?
In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:
- Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
- Lubrication of the closing systems, casters and brakes;
- Checking the tyres on the casters for wear;
- Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
Products you might like
-
-
Ext. dim. : 800 x 600 x 715 mm,
Volume : 132 L,
Cold source : eutectic plate TOP 130,
Logistics formats : Euronorm crate 600 x 400 et Half Euro-pallet 80 x 600
View details -
Ext. dim. : 595 x 395 x 455 mm,
Volume : 60 L,
Cold source : eutectic plate TOP 64,
Logistics format : Quarter Euro-pallet 800 x 1200
View details
Isothermal food packaging
Choosing the right isothermal food packaging can be a challenging task. Made of Ppe , Food-grade polypropylene, the isothermal containers perfectly match to Cryogenics, Health and Logistics’ sectors. Customization can be made threw signage, tracking, brandingm marking, or your logo mold into the mass (food industry, catering services…)
In order to build a more sustainable tomorow, our isothermal food packaging is totaly recycable, the way we design and manufacture our isothermal packaging is always done in responsible production.
We ensure that every aspect of the isothermal food packaging fits the specific needs of our customers in accordance with the industrial’ sector : temperature variations, food contact, easay clean internal compartments…
Technical characteristics
- There are three types of food storage: ambient, chilled, and frozen at controlled temperature.
- Perishable food products can be safely stored at the right internal temperature thanks to the high performance insulation for extended periods of time.
- No refrigerated trucks needed, the eutectic plates maintain the products at the right temperature during transportation and storage.
- External dimensions (L x l x h) : 680 x 560 x 850 mm
- Internal dimensions (L x l x h) : 477 x 363 x 620 mm
- Internal volume : 105 L
- Empty weight thermal box : 30 Kg
- The isothermal food packaging is a monobloc* wall in UV-resistant made of food grade polyethylene
*Isothermal containers are not delivered flat.
Any question about our range of isothermal boxes ? Contact us.
