Ext. dim. : 600 x 500 x 580 mm,
Volume : 53 L,
Cold source : eutectic plate TOP 55,
Logistics format : Quarter ISO Pallet 1000 x 1200
View detailsInsulated BAC
BAC 25
- Ext. dim. (LxDxH) : 490 x 510 x 663 mm
- Int. dim. (LxDxH) : 272 x 319 x 385 mm
- Int. Vol. : 26 Liters
- Unloaded weight : 16 Kg
- Insulating material : Polyurethane foam
- Wall material : Food grade polyethylene
- Application sectors : Cryogenics, Health et Logistics
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Engraved nameplate
Specifications

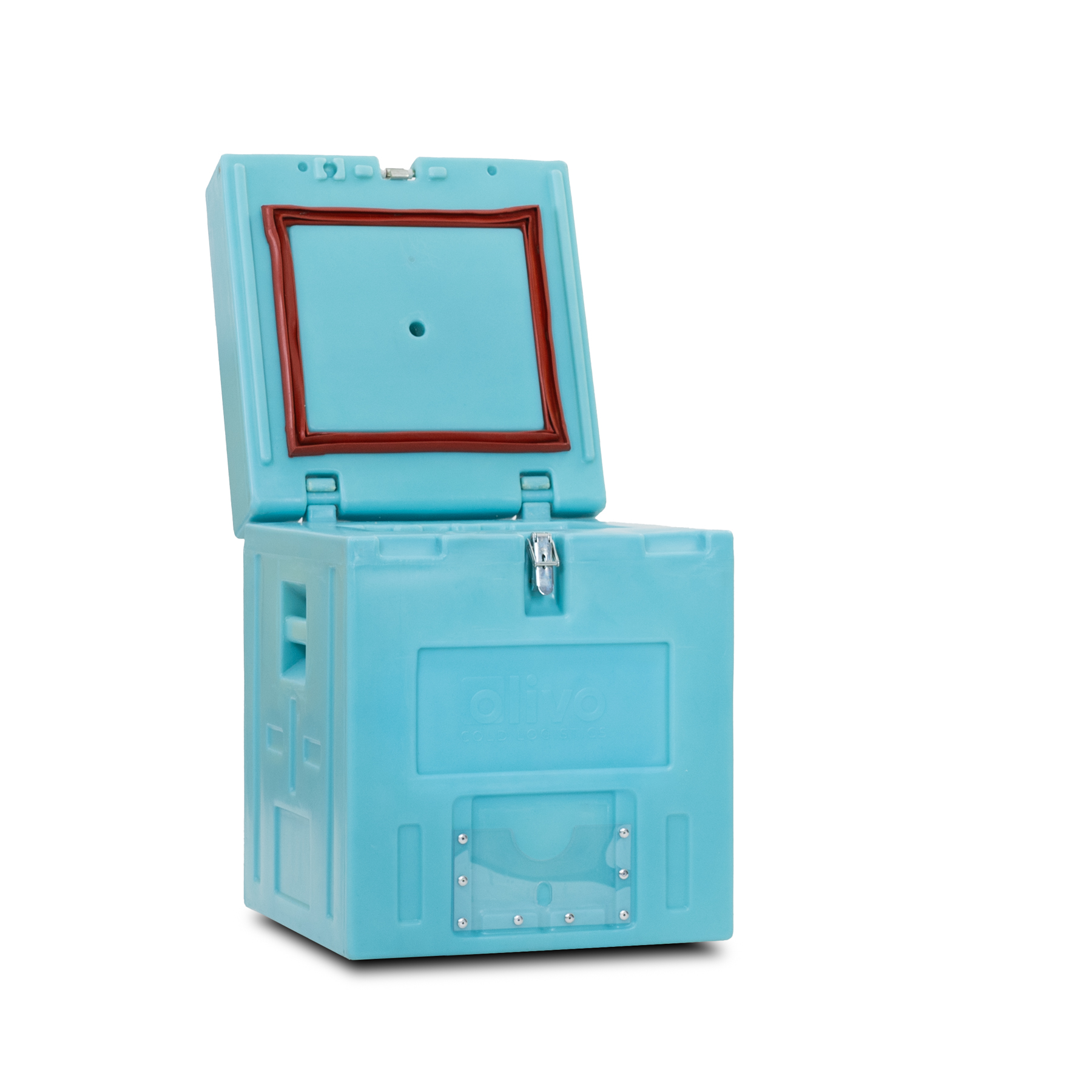

The BAC 25 isothermal container is the ideal solution for those who need a high-performance isothermal storage container. With an external dimension of 490 x 510 x 670 mm and an internal dimension of 242 x 267 x 393 mm, this container has a total volume of 25 litres.
What’s more, the BAC25 is made from food-grade polyethylene and features a moulded eutectic plate support and a mass-moulded body/lid joint. The BAC25 is also fitted with a recessed frog with sealing facility, two moulded handles and a riveted label holder.

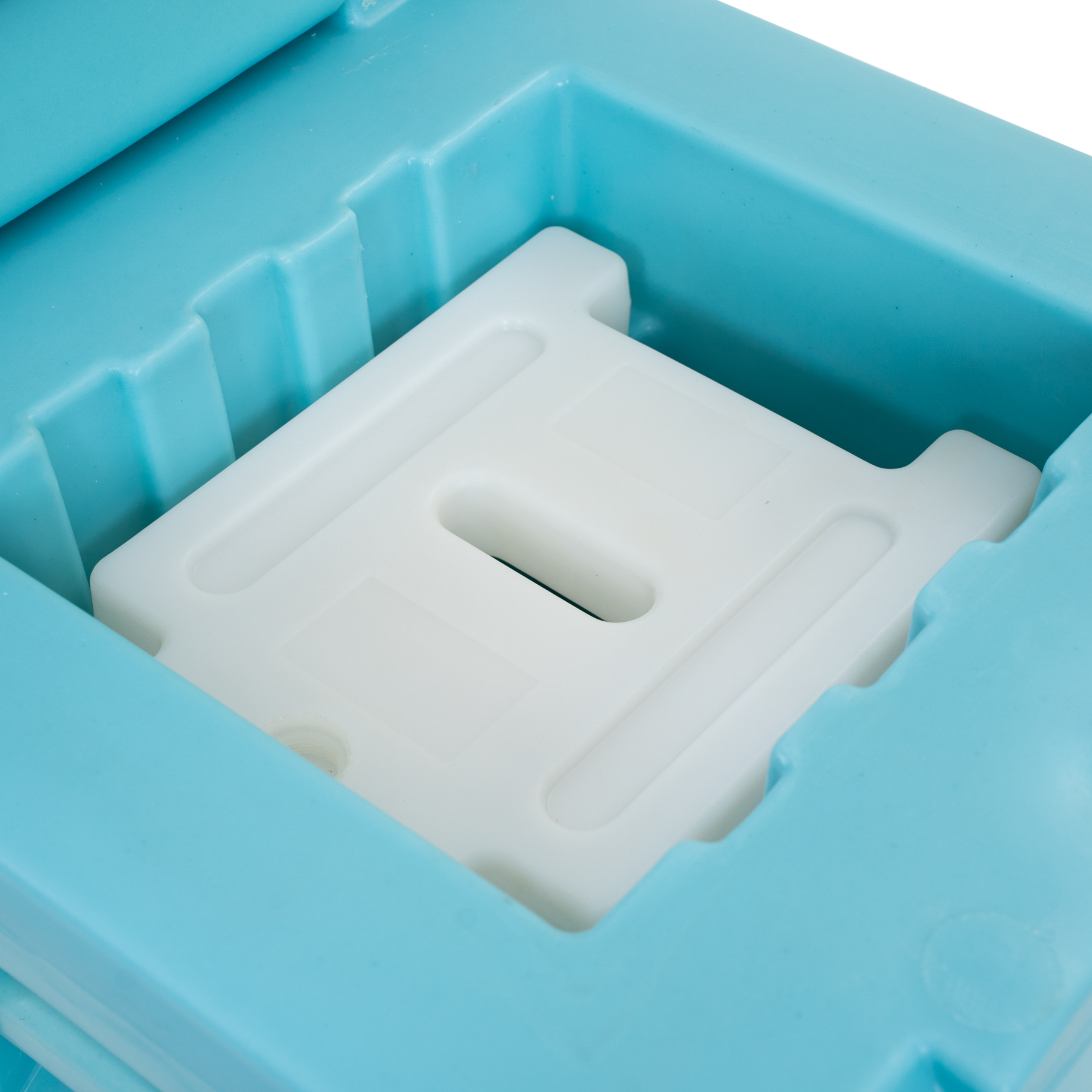

This tub uses Top 25 eutectic plate.
- Chest and lid made of food-graded monobloc rotomolded polyethylene

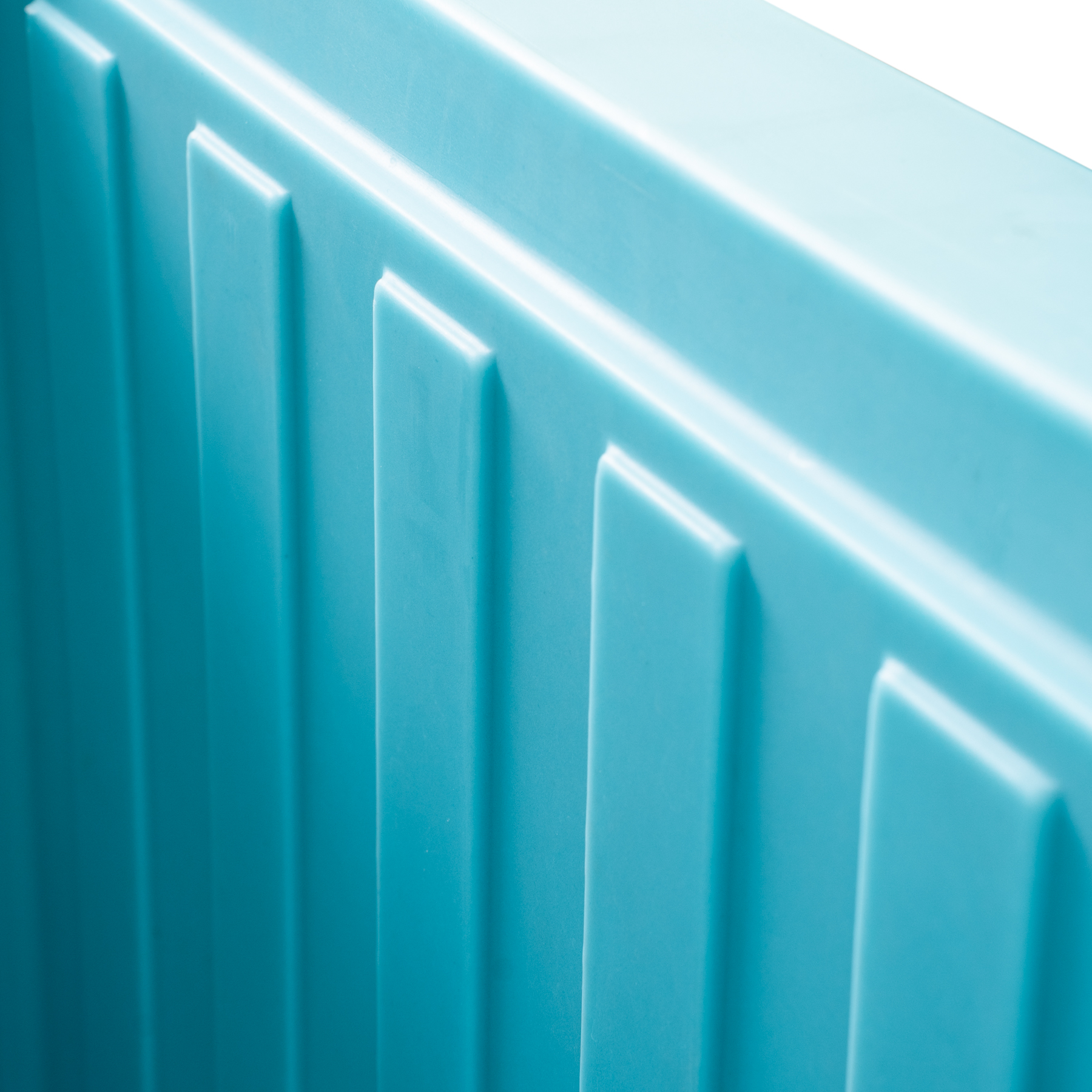

- Inner convecton groovings
- Eutectic plate molded shelf

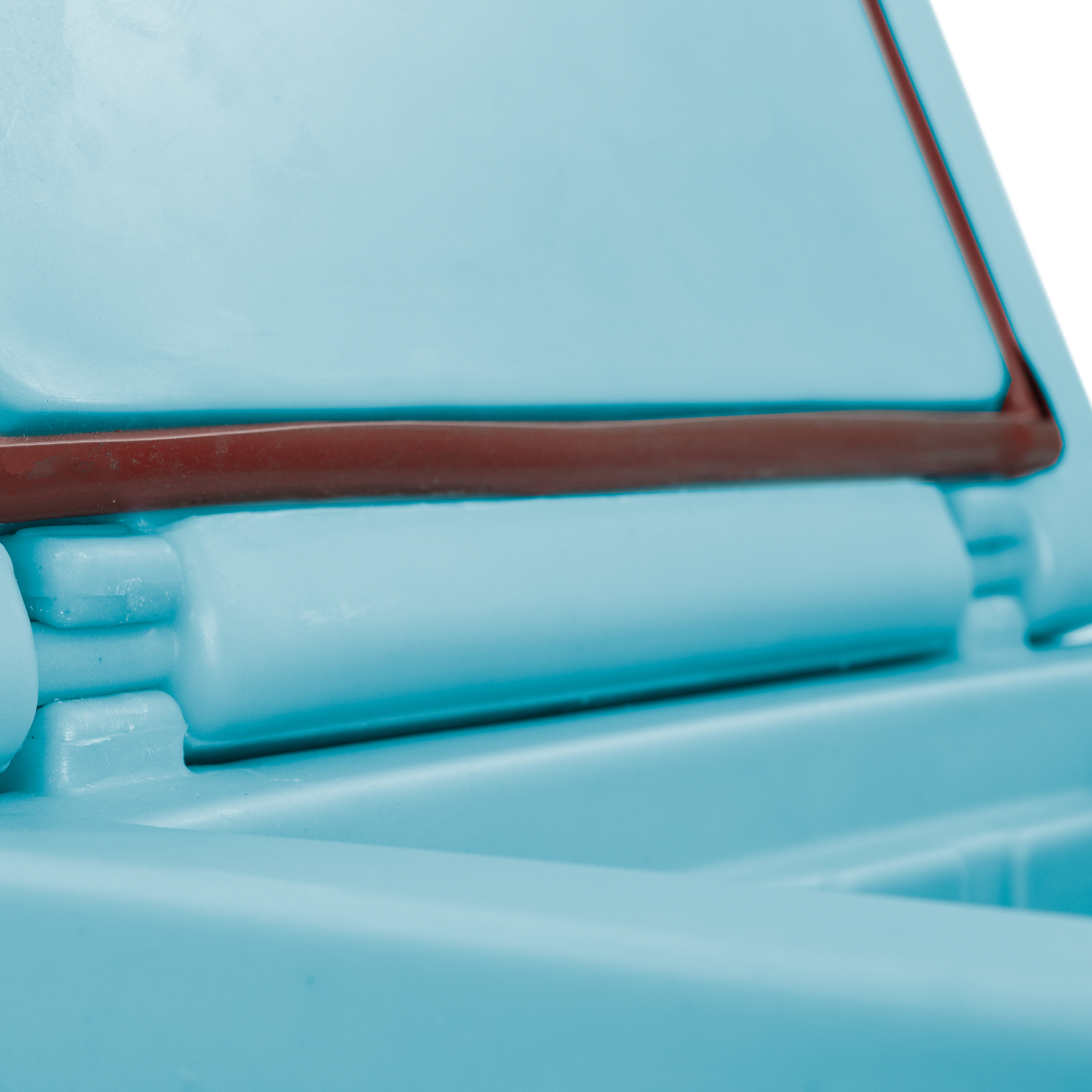

- Chest/lid molded hinge, 115° opening
- Monobloc frame silicone seal

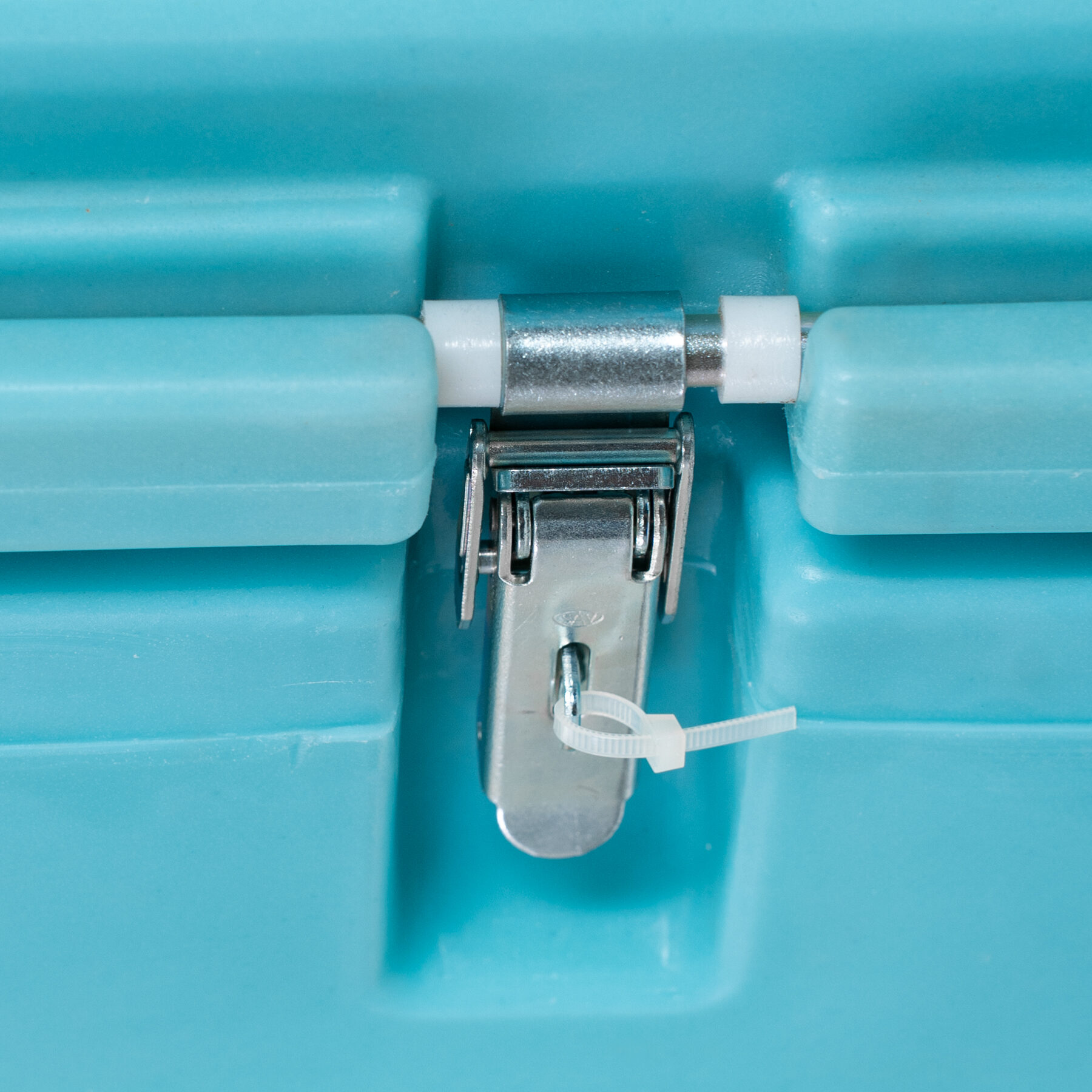

- Embedded closing latch – sealable with a padlock/seal

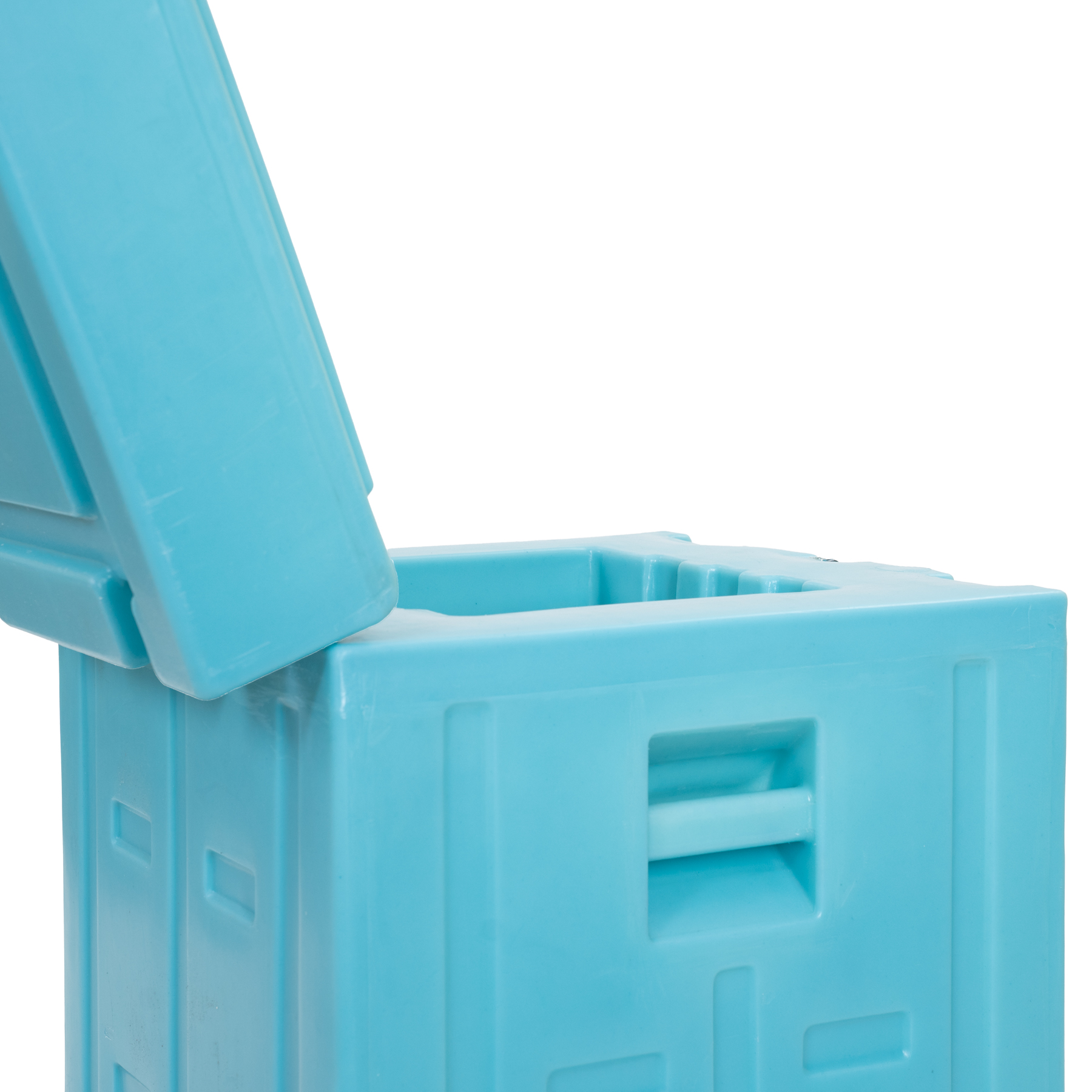

- 2 molded handles

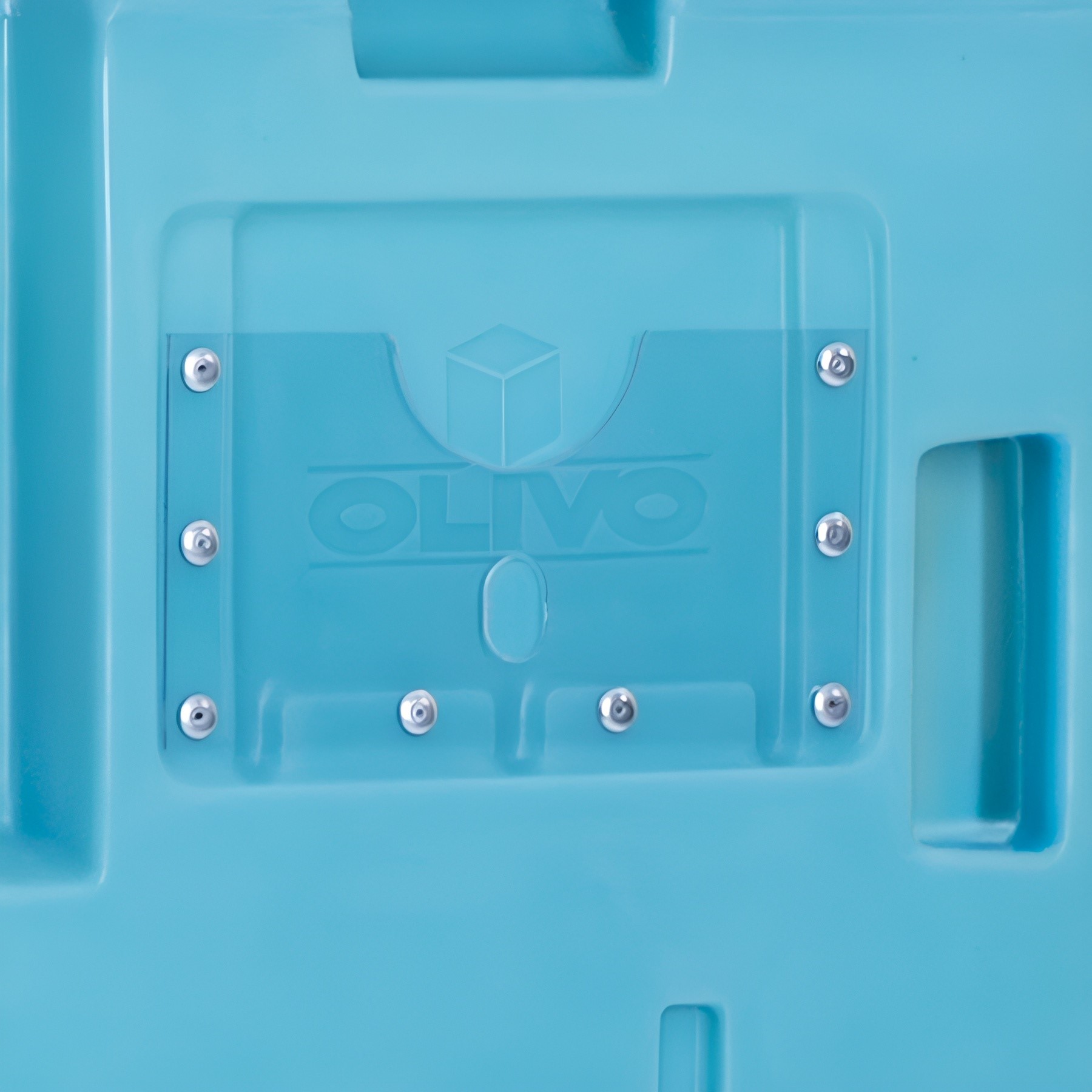

- Embedded label holder
Frequently asked questions about this product
-
Personalization
Is it possible to order made-to-measure containers ?
Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.
-
Personalization
Can the insulated container be pierced or drilled through?
No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.
-
Isothermal containers
What preventive operations are recommended to guarantee the longevity of an insulated container?
In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:
- Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
- Lubrication of the closing systems, casters and brakes;
- Checking the tyres on the casters for wear;
- Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
