Accessory Eutectic plate rack TOP 370
Height : 1585 mm
Width : 690 mm
Depth : 1020 mm
Number of plates stored : up to 40
Handling handles : 4
Tare weight : 90 kg
Loaded weight : 442 kg
Insulated BAC
BAC 160
- Ext. dim. (LxDxH) : 800 x 600 x 1050 mm
- Int. dim. (LxDxH) : 595 x 385 x 695 mm
- Int. Vol. : 159 Liters
- Coef.K : 0.32 W/m².°C
- Unloaded weight : 50 Kg
- Insulating material : Polyurethane foam
- Wall material : Food-grade polypropylene (PPe)
- Logistics format : Half Euro-pallet 80 x 600
- Application sectors : Cryogenics, Food, Health et Logistics
-
Certification :
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Marking of the logo in the mass
Engraved nameplate
Accessories compatible with this product
To add an accessory to your quote, please write your request in the text box provided.
-
-

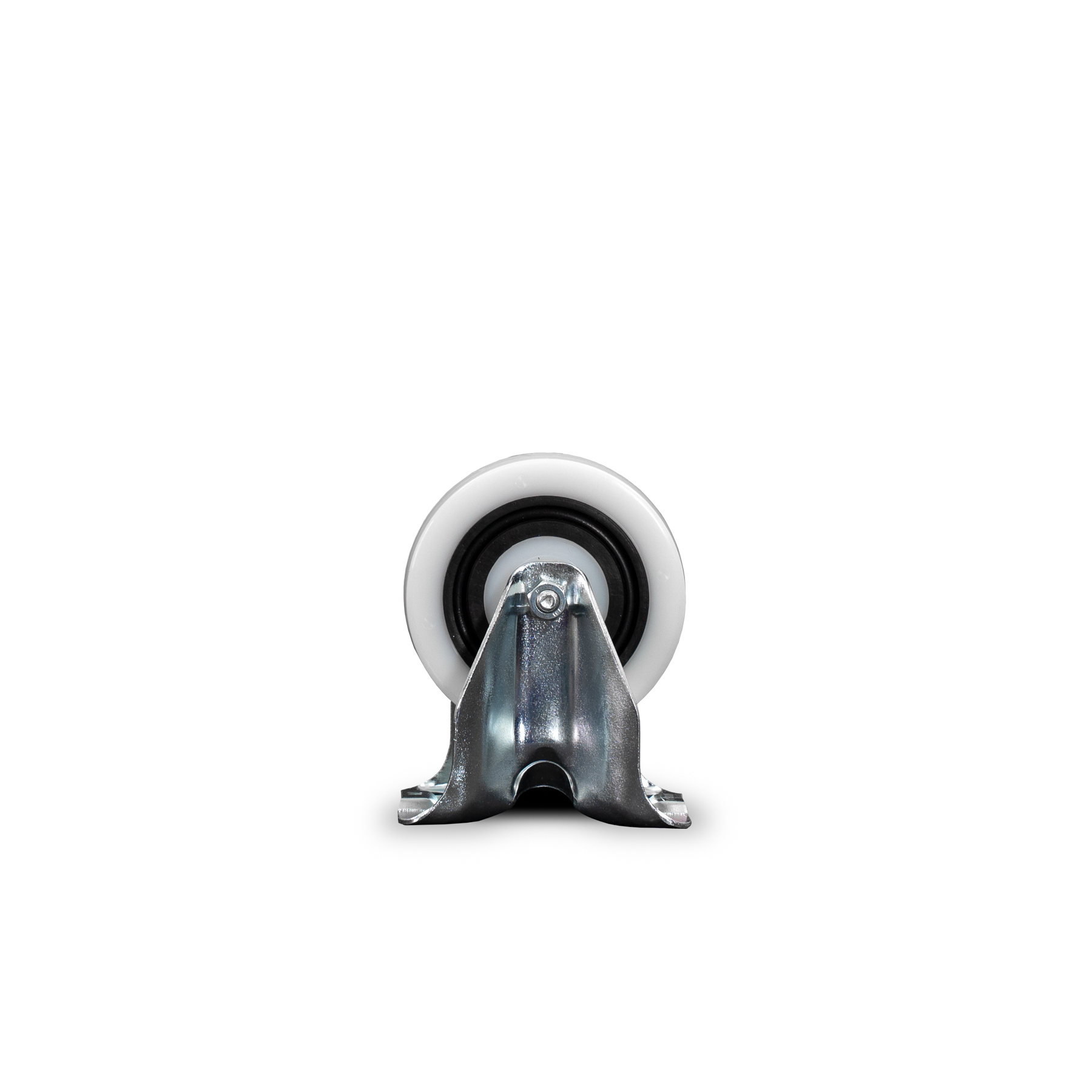

Accessory Brake wheel
Diameter : ø 100 mm
Height with base plate : 128 mm
Tyre width : 36 mm
Features : hybrid wheel
Polyamide wheel centre and tyre, elastic rubber ring :
-
Accessory Swivel wheel
Diameter : ø 100 mm
Height with base plate : 128 mm
Tyre width : 36 mm
Features : hybrid wheel
Polyamide wheel centre and tyre, elastic rubber ring :
Specifications
De dimensions extérieures 800 x 600 x 1050 mm, ce bac isotherme dispose d’un volume intérieur de 150 L et pèse 51 Kg à vide. Il est parfaitement adapté au transport de produits pharmaceutiques et de glace carbonique, mais aussi pour la livraison dernier km et la distribution alimentaire. Ce bac utilise la plaque eutectique Top 370.
- Caisse et couvercle en polyéthylène alimentaire rotomoulé monobloc.
- Châssis encastré, acier anti- corrosion.
- 4 roues Ø 125 mm: 2 fixes, 2 pivotantes ou 4 pieds métalliques Ø 80 mm.

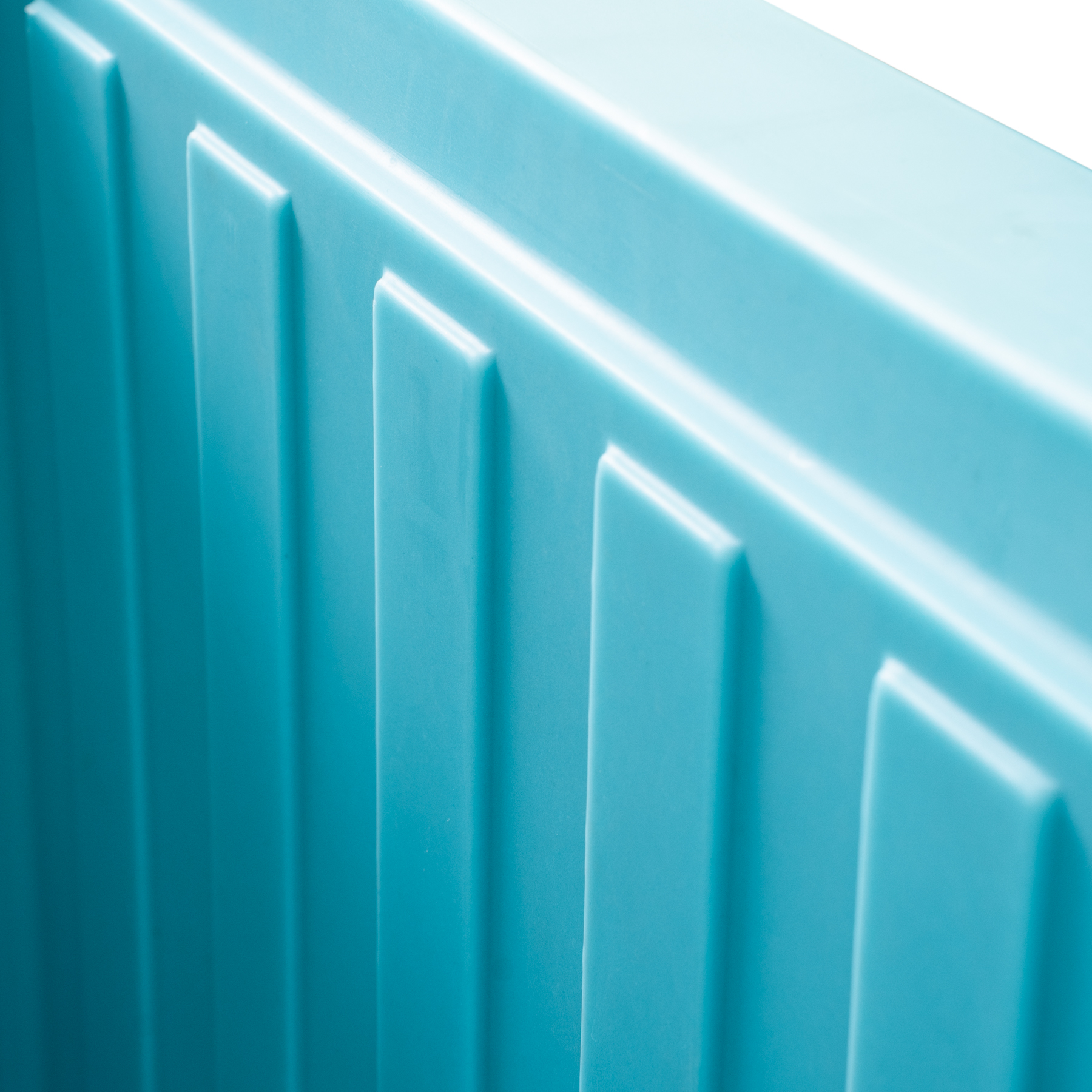

- Rainurages intérieurs de convection.

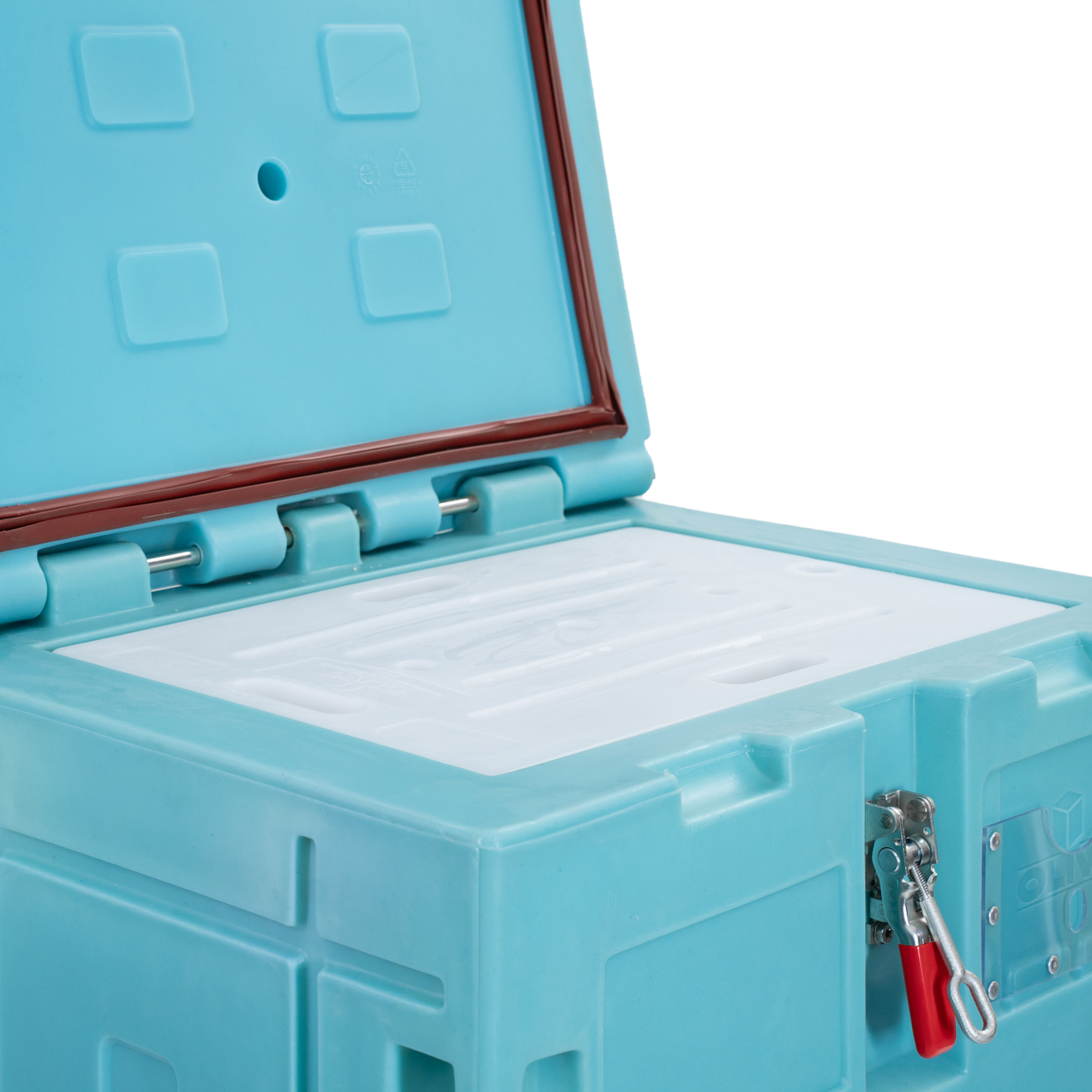

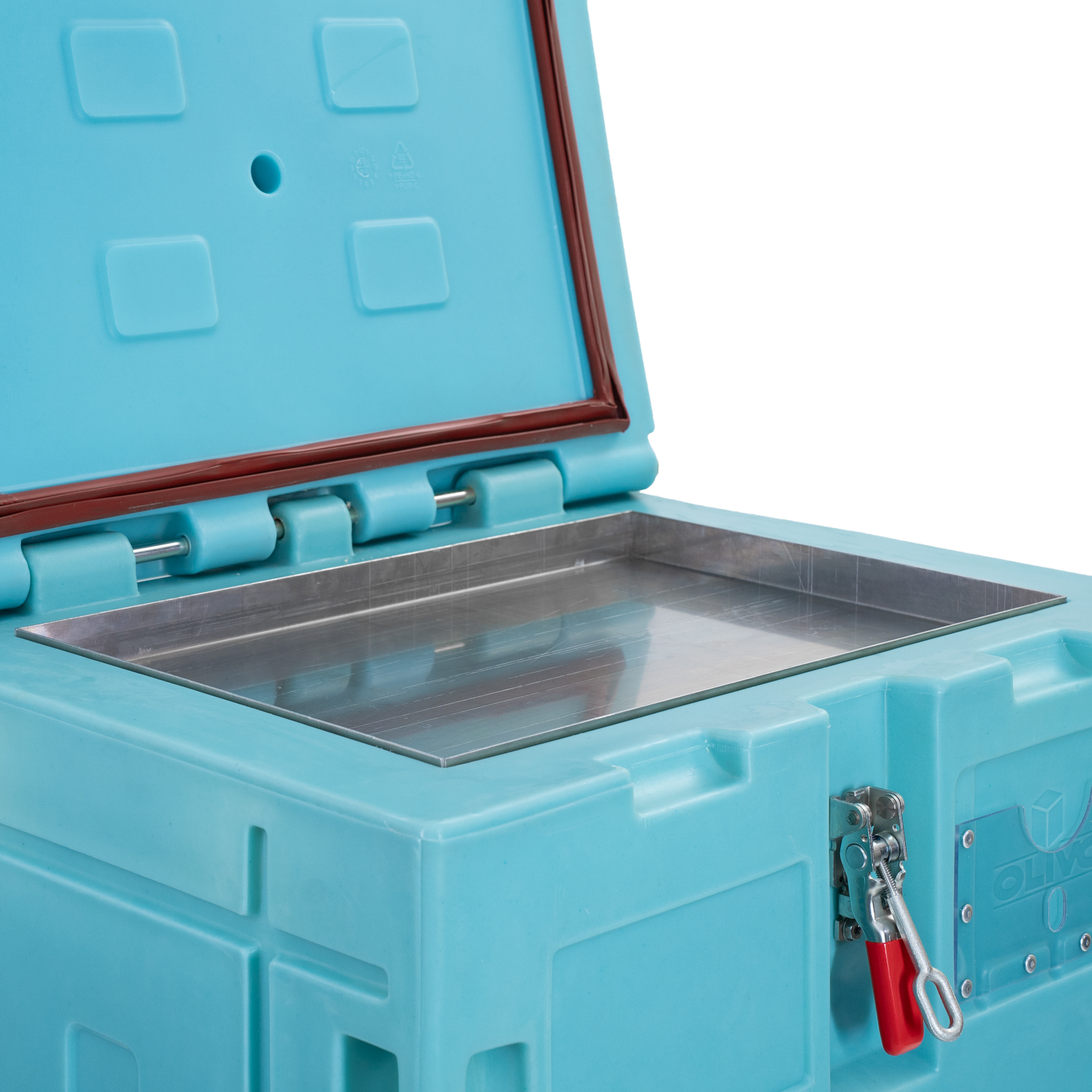

- Support plaque eutectique venant du moulage.

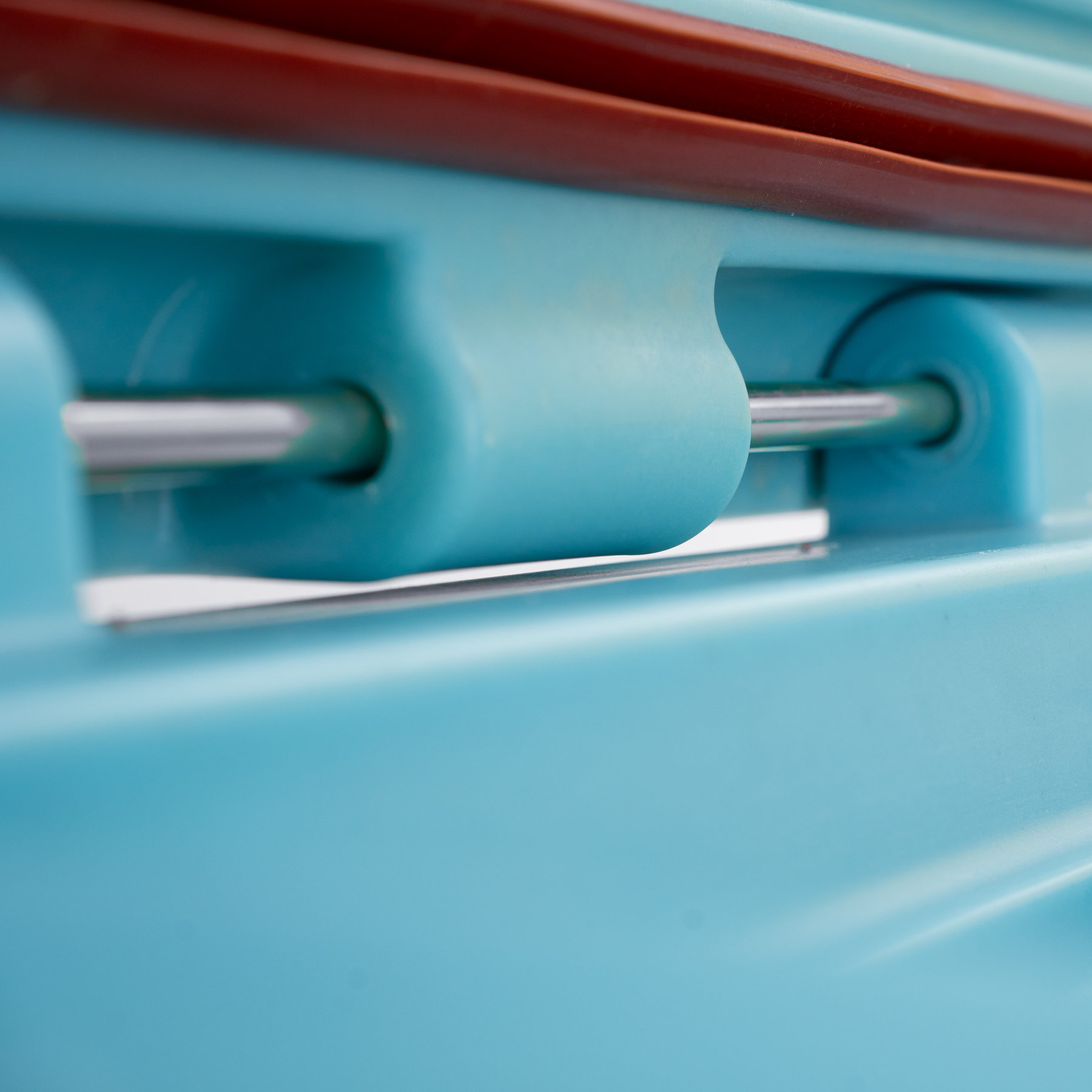

- Articulation caisse/couvercle venant du moulage, ouverture à 105°.
- Joint cadre monobloc silicone.

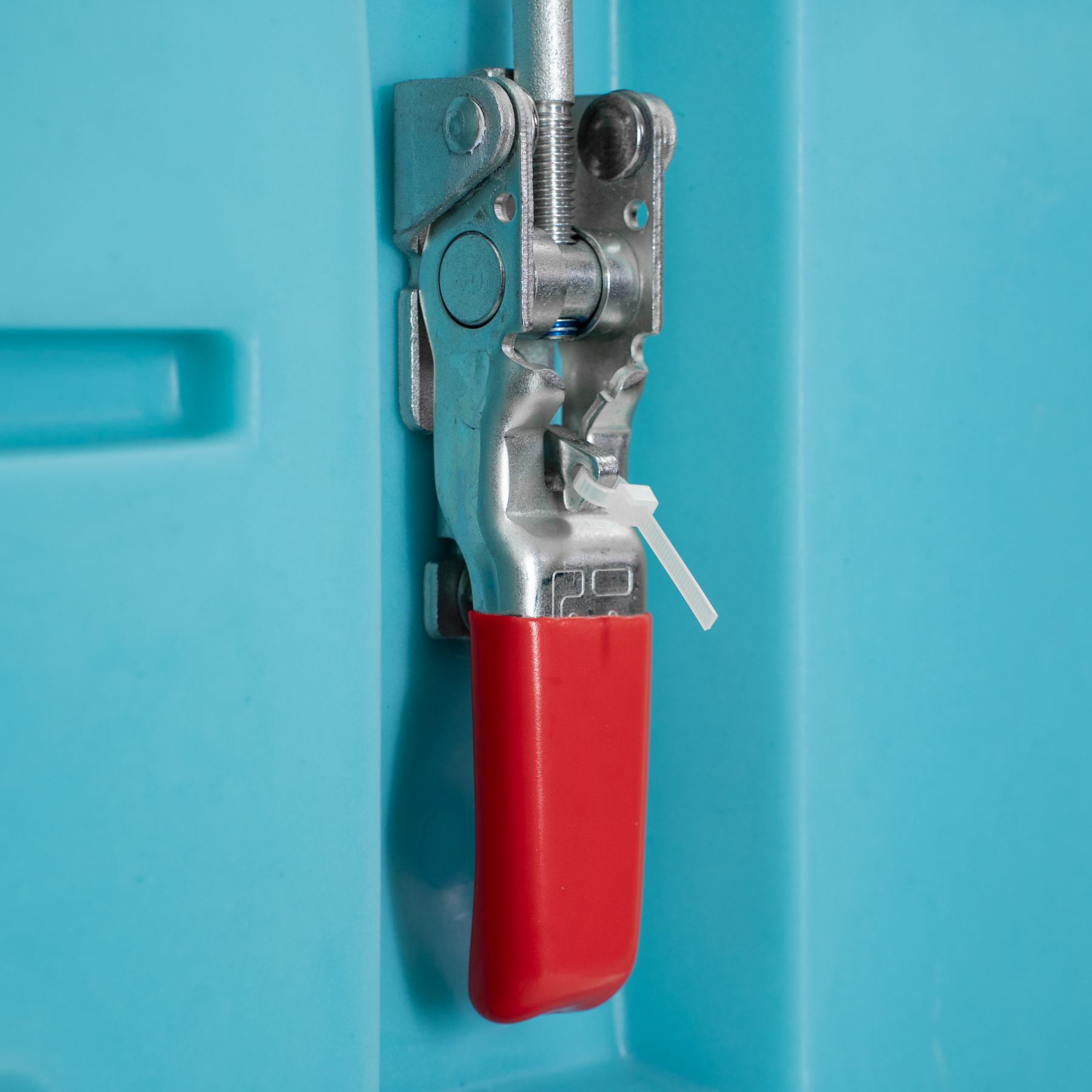

- Une grenouillère de fermeture encastrée (emplacement pour scellé).

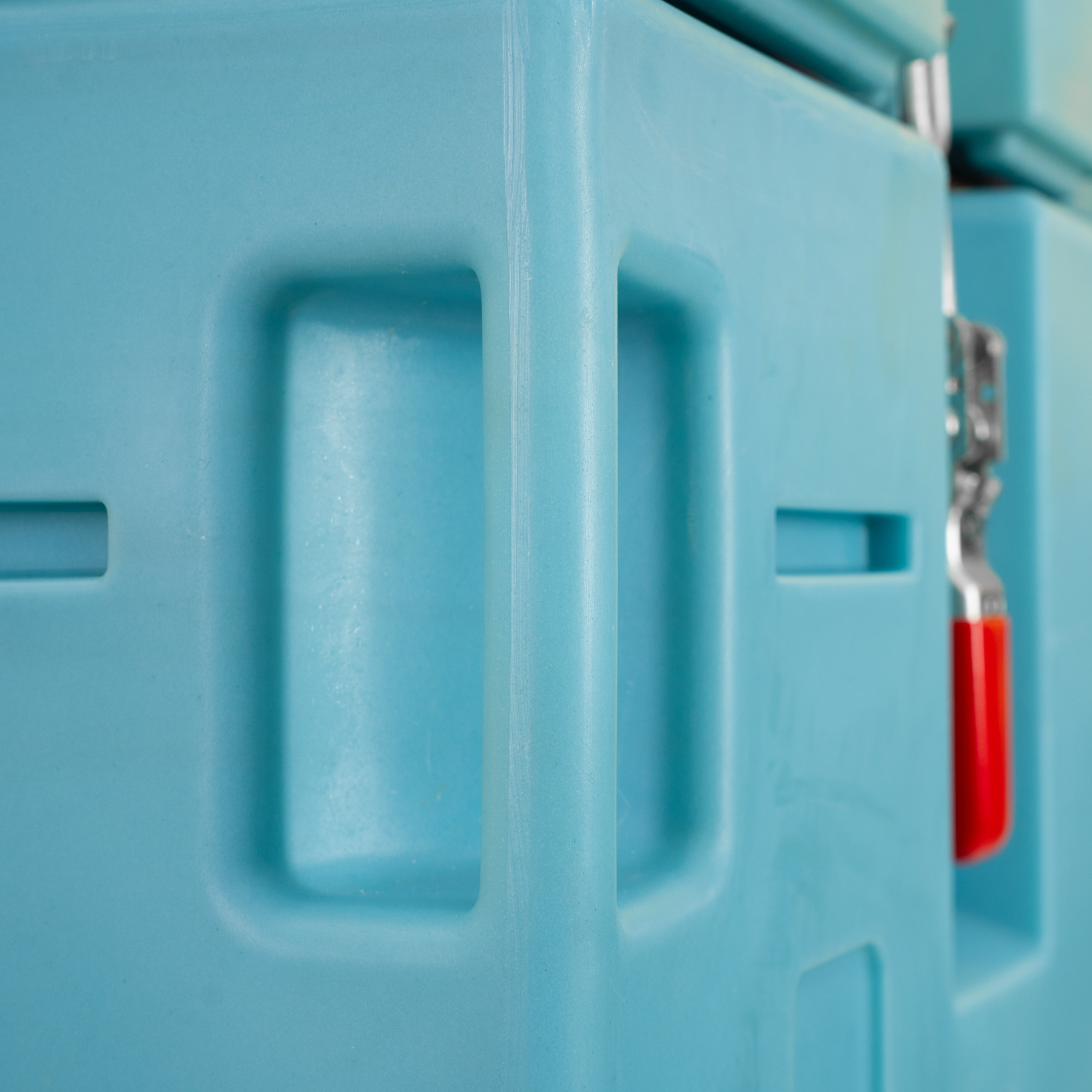

- 4 poignées de manutention venant du moulage.

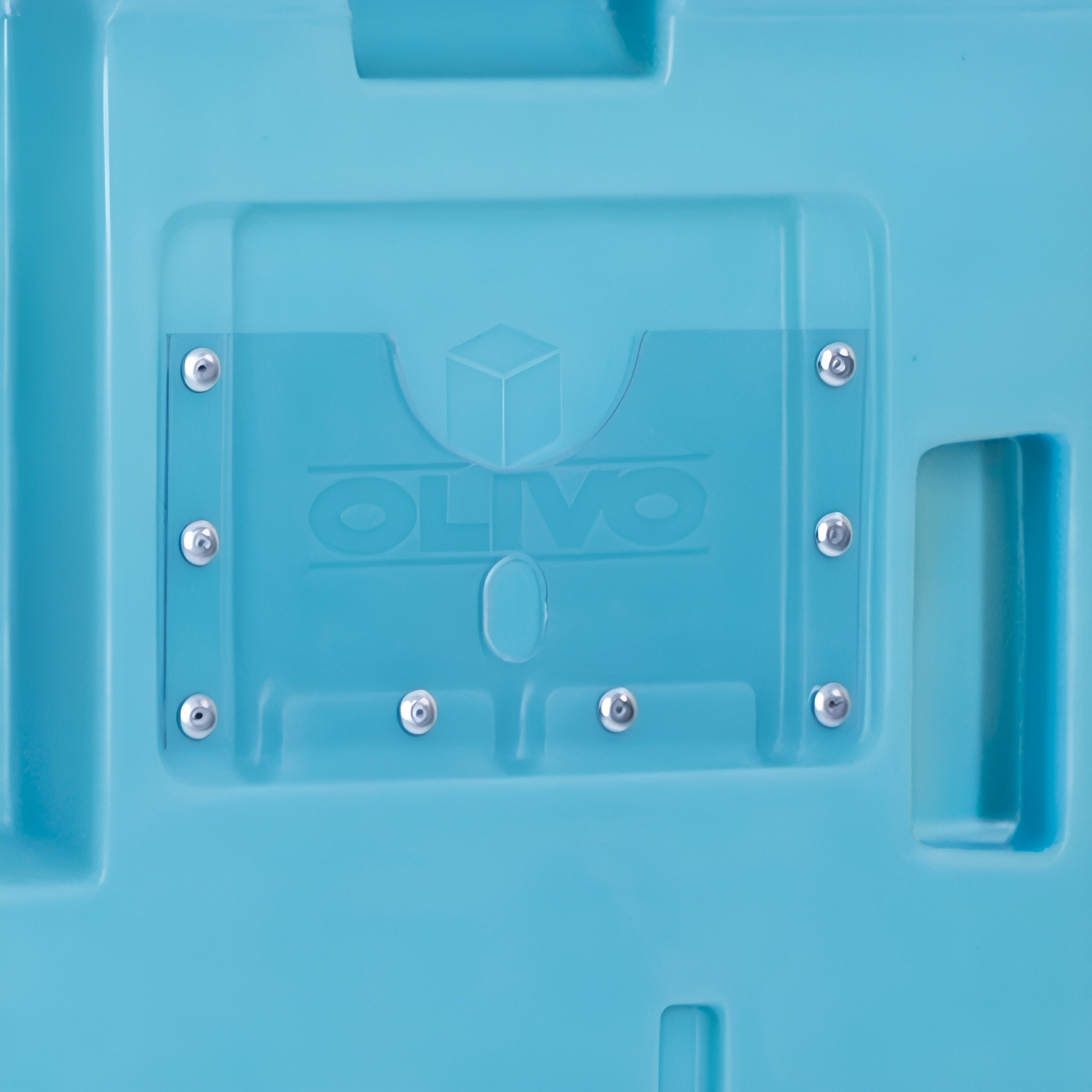

- Porte étiquette encastré.

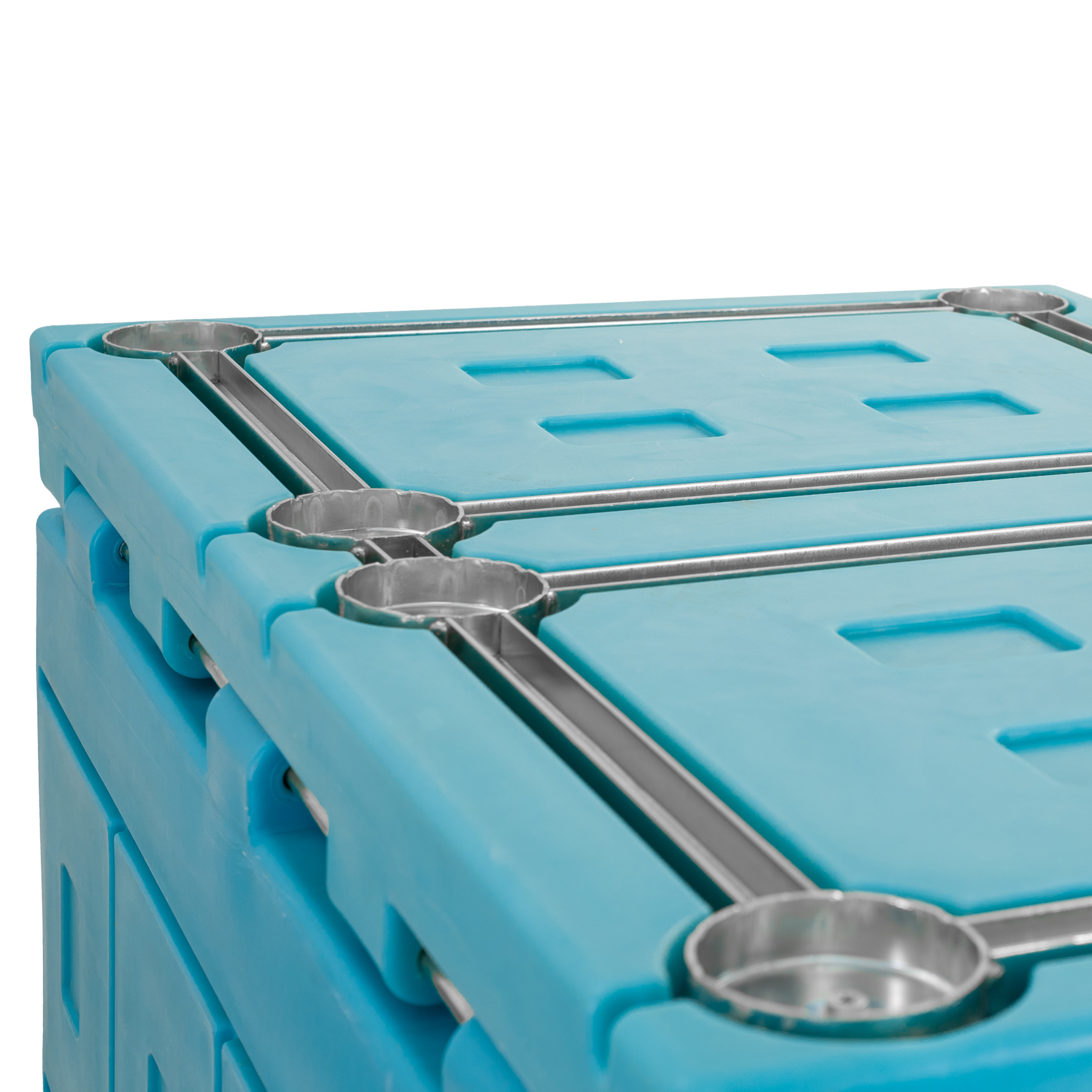

- Couvercle équipé de plots de gerbage métalliques pour BAC sur pieds.

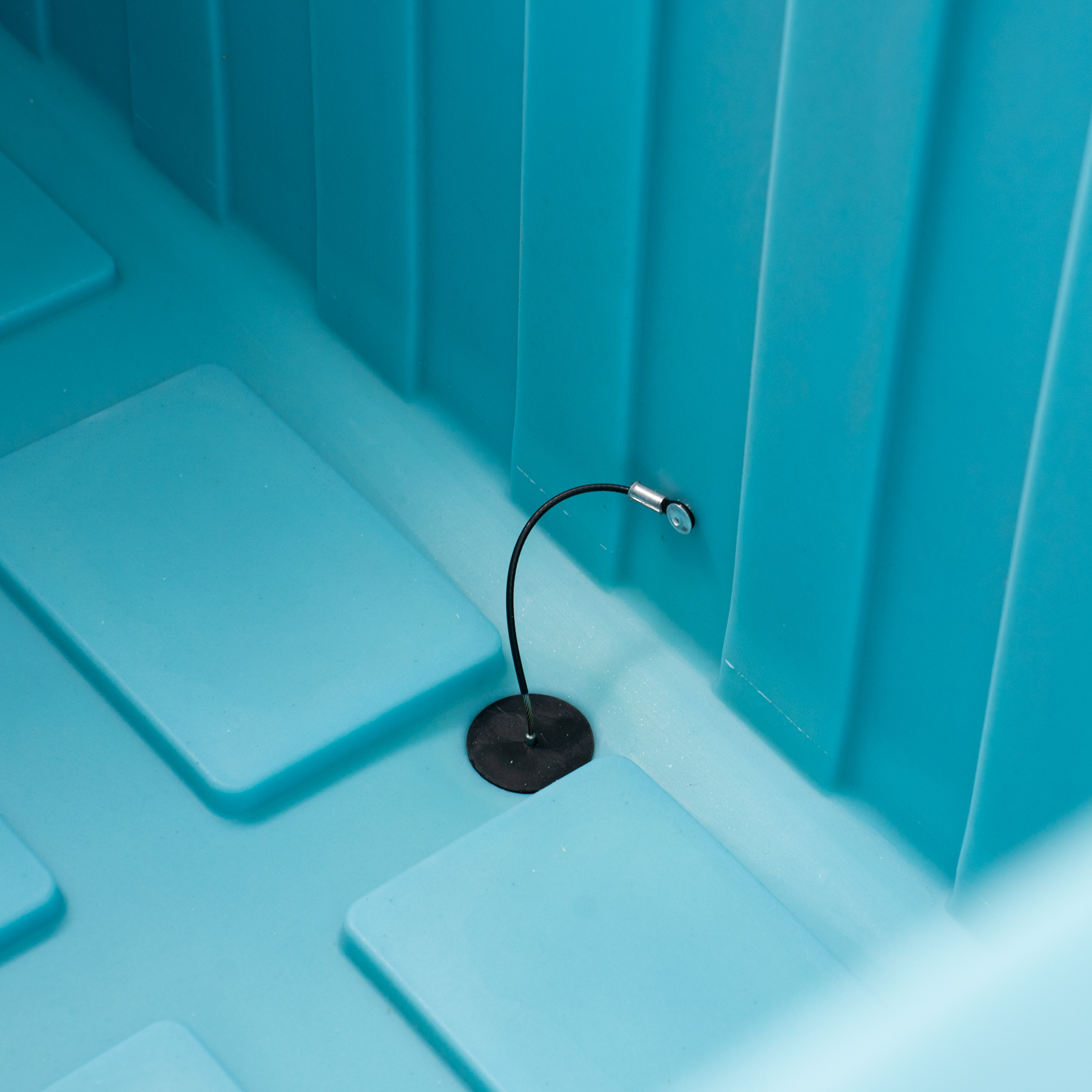

- Bonde de vidange
Frequently asked questions about this product
-
Personalization
Is it possible to order made-to-measure containers ?
Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.
-
Personalization
Can the insulated container be pierced or drilled through?
No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.
-
Isothermal containers
What preventive operations are recommended to guarantee the longevity of an insulated container?
In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:
- Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
- Lubrication of the closing systems, casters and brakes;
- Checking the tyres on the casters for wear;
- Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
