SIBER SYSTEM®

Injected cryogenic cooling to boost your performance

  • Cold on demand
    The right amount of cold is injected based on a target temperature maintenance time and pre-determined transit conditions. Cost-effectiveness and operational performance are achieved with by a system that works on the principle of “you get what you need’. 2.2 kg of liquid CO2 produce 1 kg of cryo snow with an exceptional yield of 45%.
  • Secure cold production
    The injection tray is designed to diffuse above or below-zero cold without interruption. SIBER SYSTEM® reduces the amount of handling operators have to do by reducing the management of cold sources, which means there is less risk of MSDs.
  • Eco-friendly cold
    The liquid CO2 injected is recovered food grade gas from a reprocessing facility operated by Messer. A cold source that is contributing to the development of a circular economy in temperature-controlled logistics.

    The SIBER SYSTEM® was co-developed with our longstanding technological partner Messer and has been in use for over 30 years now.
Olivo 7 9 2023©Céline Vautey (183)

Solutions that do what your business actually needs.

Cost-effectiveness

The cryogenic injection business model

Productivity

Automated delivery of liquid CO2, operational continuity, no handling of the cold source

tracabilite 2

Flexibility

Mixed, chilled, or frozen cold injected
“With SIBER SYSTEM®, 1 standard lorry can transport 3 temperatures ranges at the
same time”

Avec SIBER SYSTEM®, 1 camion standard transporte simultanément 3 gammes de température

SiberSnow®

Injected cold for ROLL container logistics, for both last mile and middle mile journeys. Maintains temperatures for up to 24 h.

How it works

The SiberSnow® system consists of an injection module and a cold chain logistics module.

  • The Siber Tank : an injection station containing the refrigerant, the dry ice, which is injected into the thermal tank by expanding liquid CO2. The amount of cold injected is calculated based on logistics parameters defined in advance and corresponds to the actual need, thereby avoiding excess energy consumption.
  • The thermal tank in the ROLL insulated container : it diffuses above-zero cold (+2°C/+4°C) for chilled products or below-zero cold (-26°C) for frozen products.

The tank consists of two internal compartments where the refrigerant is stored :

  • The CHILLED compartment is insulated so as to slow the thermal exchange and create a temperature inside the ROLL of +2°C/+4°C;
  • The FROZEN compartment is calibrated to create a temperature inside the ROLL of -25°C

User benefits

  • Reduced costs and less cold consumed;
  • Operational agility;
  • Operator safety.

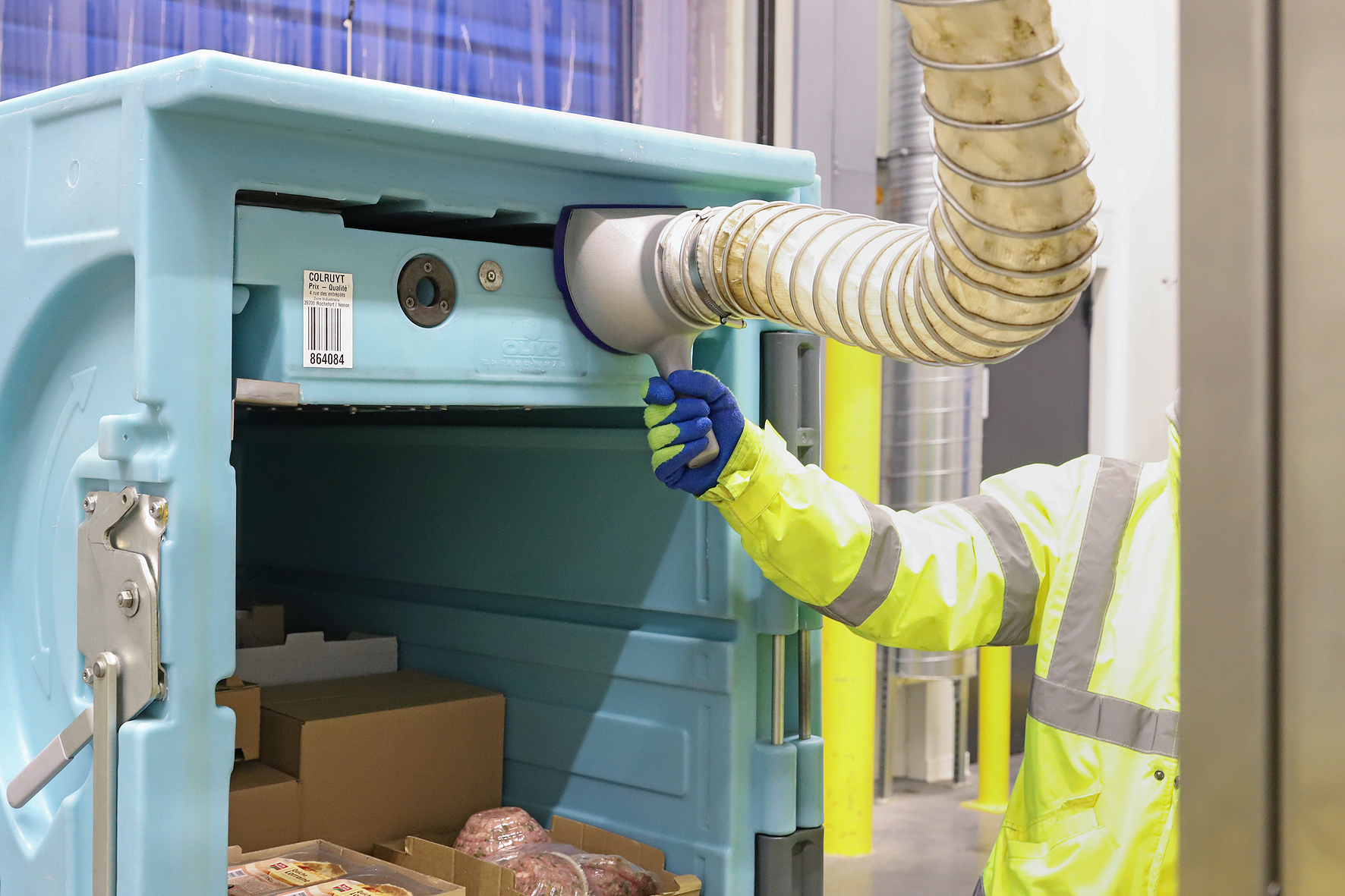

Olivo Colruyt 7 6 2024©Céline Vautey (64)
  • capture-decran-2023-11-02-a-19-36-41
  • capture-decran-2023-11-02-a-19-36-22
  • LOGO METRO

Need to talk to us about a project?

Do you need more information or a chat with our teams about a logistics project?

Our contacts

ZA Charles Chana
1 boulevard des Mineurs – CS 50019
42230 Roche-la-Molière

Tel : +33 (0)4 77 90 68 63

SiberCity®

Injected cryogenic cooling is suitable for last mile logistics. Temperatures can be maintained for up to 16 h  for chilled and frozen products.

How it works:

The SiberCity® system consists of a dry ice injection module and a logistics module for transporting temperature-sensitive goods.

The injection tower is an automatic dispenser which calibrates the cold source and injects it automatically into the BOX lid. The amount of cold injected is calculated based on logistics parameters defined in advance and corresponds to the actual need, thereby avoiding excess energy consumption.

The SiberCity® logistics module is made of EPP and consists of two compartments:

  • A secure, smart lid: the dry ice is injected directly into the lid for continuous diffusion to keep chilled or frozen products at their correct temperature.
  • A 555 x 360 mm BOX insulated container: this can be used as an insulated insert for a 600 x 400 plastic crate

User benefits:

  • Optimised costs and organisation
  • Possibility of pooling and securing temperature-sensitive flows
  • Deployment of a sustainable, environmentally friendly cold chain

SIBERCITY OLIVO MESSER

Need to talk to us about a project?

Do you need more information or a chat with our teams about a logistics project?

Our contacts

ZA Charles Chana
1 boulevard des Mineurs – CS 50019
42230 Roche-la-Molière

Tel : +33 (0)4 77 90 68 63

Our flagship products SIBER SYSTEM®

  • BOX 34

    Ext. dim. : 555 x 360 x 331 mm,

    Volume : 34 L,

    Cold sources : eutectic plate TOP 64 et SiberCity®,

    View details
  • ROLL 900
    logoATP 1

    Ext. dim. : 800 x 1200 x 1860 mm,

    Volume : 885 L,

    Cold sources : eutectic plate TOP 900 et SiberSnow ®,

    Logistics format : Euro-pallet 800 x 1200

    View details
